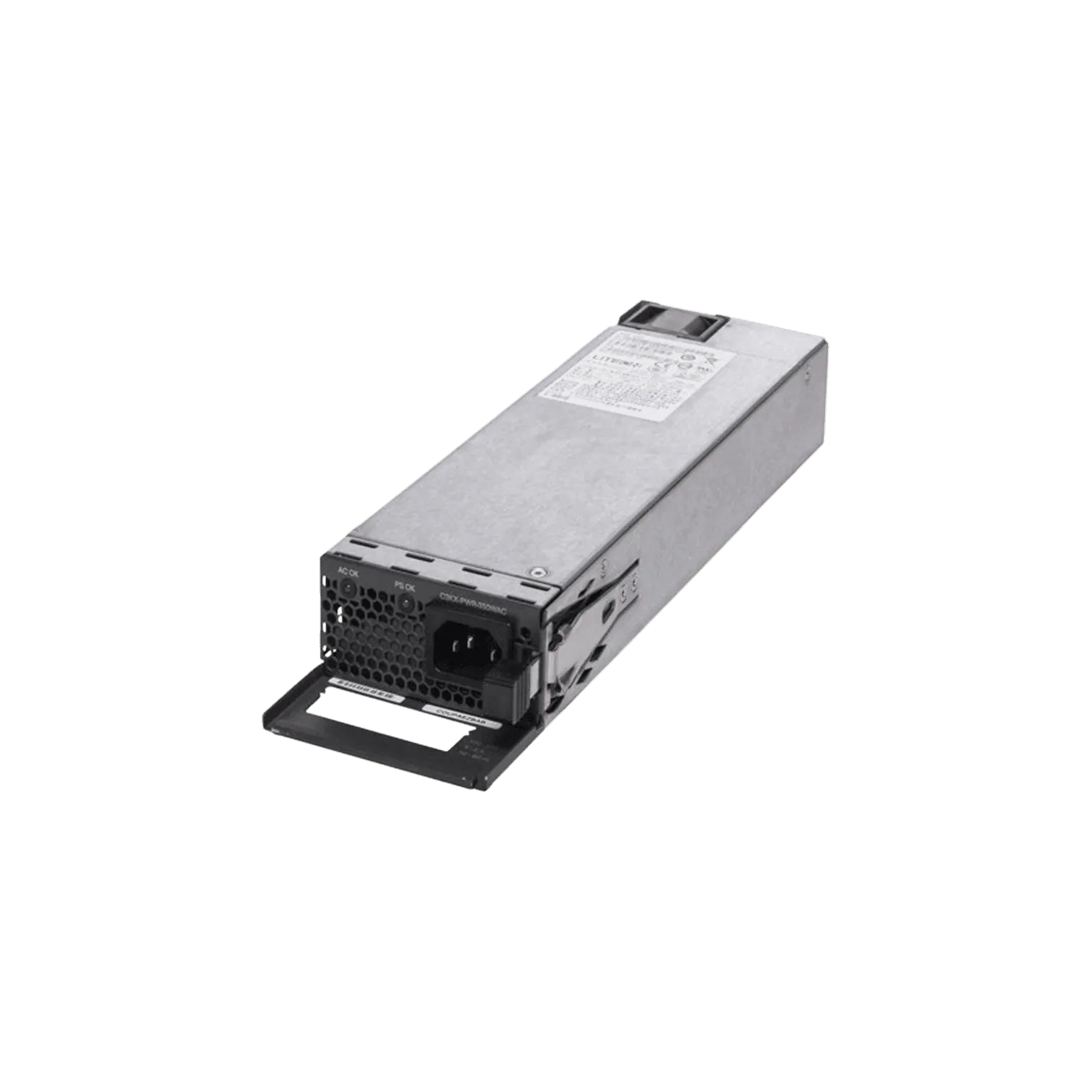

PWR-C1-715WAC-P

Sale!

PWR-C1-715WAC-P

Original price was: $910.00.Current price is: $235.00.

The PWR-C1-715WAC-P Catalyst 9300 switch power supply is considered exactly for the Cisco Catalyst 9300 Series Switch. Designed with accuracy engineering by Cisco, a reputable industry leader known for their high quality networking solutions, the PWR-C1-715WAC-P offer reliable performance you can trust.

PWR-C1-715WAC-P

PWR-C1-715WAC-P

Original price was: $910.00.Current price is: $235.00.

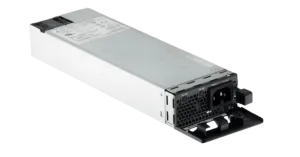

Appearance of PWR-C1-715WAC=



PWR-C1-715WAC-P

CISCO PWR-C1-715WAC-P Config 1 – Power Supply – Hot-plug/redundant – 715 Watt

Product Code PWR-C1-715WAC=
Power supply rated maximum 715W
Total output BTU (Note: 1000 BTU/hr = 293W) 2465 BTU/hr, 715W
Input-voltage range and frequency 100-240VAC,

50-60 Hz

Input current 10-5A
Output ratings -56V at 12.8A
Output holdup time 16.7 ms minimum at 100VAC
Power-supply input receptacles IEC 320-C16

(IEC60320-C16)

Power cord rating 13A
Physical specifications (H x W x D): 1.58 X 3.25 X 12.20 in

Recommended Elements for the PWR-C1-715WAC=.

Category Model Description
Power Cable



CAB-TA-NA North America AC Type A Power Cable
CAB-TA-JP Japan AC Type A Power Cable
CAB-C15-CBN Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors

Comparison of PWR-C1-350WAC, PWR-C1-440WDC, PWR-C1-1100WAC and PWR-C1-715WAC=.

Product Code PWR-C1-350WAC PWR-C1-440WDC PWR-C1-715WAC= PWR-C1-1100WAC
Power supply rated maximum 350W 440W 715W 1100W
Total output BTU (Note: 1000 BTU/hr = 293W) 1207BTU/hr, 350W 1517BTU/hr, 440W 2465 BTU/hr, 715W 3793 BTU/hr, 1100W
Input-voltage range and frequency 100-240VAC,

50-60 Hz

-36VDC to -72VDC 100-240VAC,

50-60 Hz

115-240VAC,

50-60 Hz

Input current 4-2A <8A at -72VDC

<16A at -36VDC

10-5A 12-6A
Output ratings -56V at 6.25A -56V at 7.86A -56V at 12.8A -56V at 19.64A
Output holdup time 16.7 ms minimum at 100VAC > 2ms at -48VDC 16.7 ms minimum at 100VAC 10 ms minimum at 102.5VAC
Power-supply input receptacles IEC 320-C16 (IEC60320-C16) Terminal strip IEC 320-C16

(IEC60320-C16)

IEC 320-C16

(IEC60320-C16)

Power cord rating 10A 20A at 100VDC 13A 13A

PWR-C1-715WAC Specification

PWR-C1-715WAC= Specification

Power supply rated maximum 715W
Total output BTU (Note: 1000 BTU/hr = 293W) 2465 BTU/hr, 715W
Input-voltage range and frequency 100-240VAC,

50-60 Hz

Input current 10-5A
Output ratings -56V at 12.8A
Output holdup time 16.7 ms minimum at 100VAC
Power-supply input receptacles IEC 320-C16

(IEC60320-C16)

Power cord rating 13A
Physical specifications (H x W x D): 1.58 X 3.25 X 12.20 in
Operating temperature 23 to 113°F (-5 to 45°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and non operating non condensing 5 to 90% non condensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

BSMI Class A (AC input models only)

VCCI Class A

EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1

Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators “AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK

Key Features :

  • Device Type : Power Supply – Hot-plug / Redundant – Plug-in Module

Power Device :

  • Input Voltage : Ac 100-240 V
  • Frequency Required : 50 – 60 Hz
  • Input Connectors : Power Iec 60320 C16
  • Output Voltage : -56 V
  • Power Capacity : 715 Watt
  • 80 Plus Certification : 80 Plus Platinum

Compatibility Information :

  • Designed For : CISCO Catalyst 9300 (715 Watt), 9300 (higher Scale) (715 Watt), 9300l (715 Watt)

PWR-C1-715WAC-P-Datasheet
