QSFP-40G-CU3M

Sale!

QSFP-40G-CU3M

Original price was: $139.00.Current price is: $64.00.

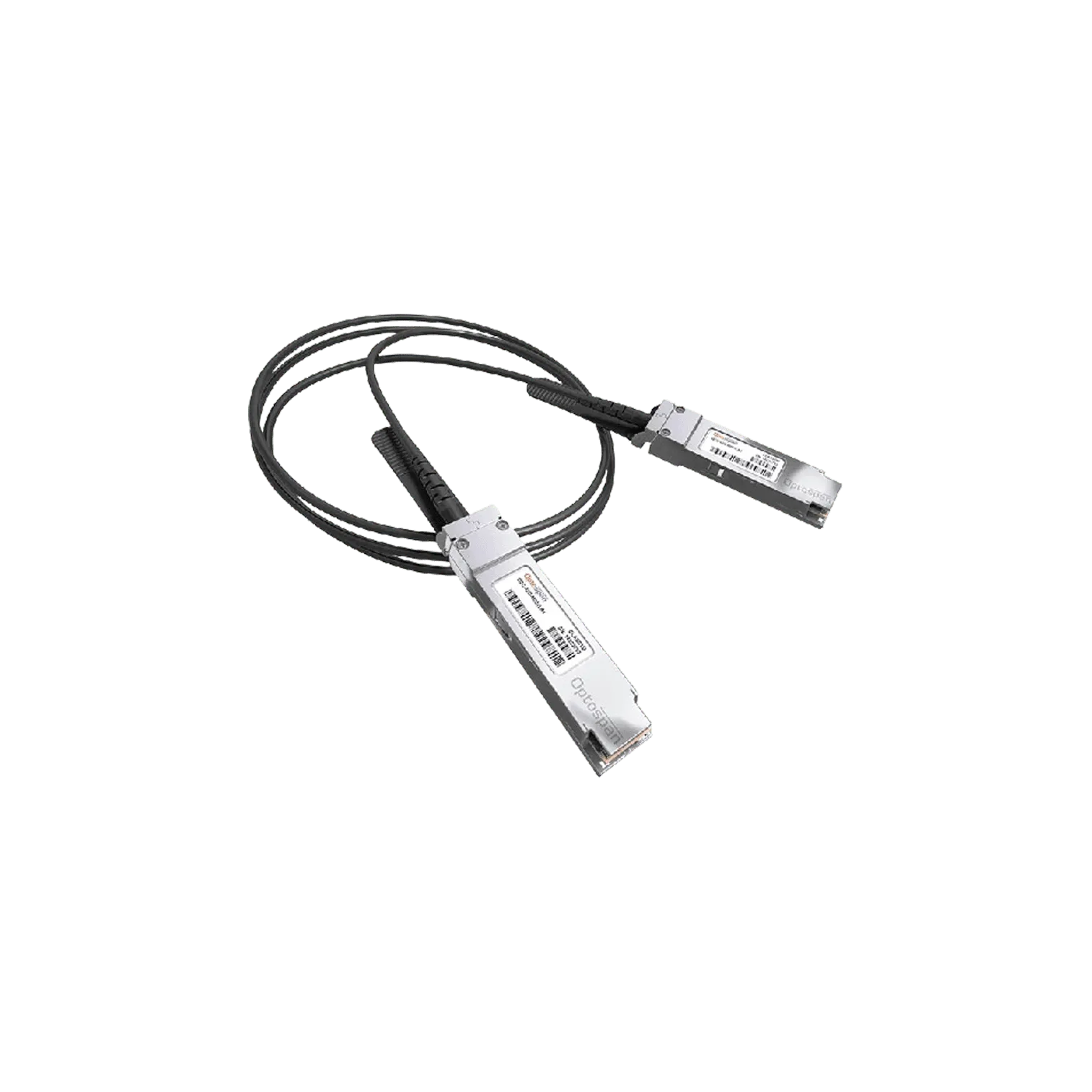

QSFP-40G-CU3M (02310MUH) is Huawei compatible 40G Passive Twinax Cable, operating over passive copper cable. 40G Passive Twinax Cable is equipped with MSA standard compatible QSFP+ transceiver assembly at each end of cable. Huawei QSFP-40G-CU3M (02310MUH) compatible 40G Passive Twinax Cable supports 2.125-41.2 Gbps data rate and such applications as 4 x InfiniBand QDR (32Gbps), 4 x InfiniBand DDR (16Gbps), 4 x InfiniBand SDR (8Gbps), 40G Ethernet (41.25Gbps), 10G Ethernet (10.31Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps). Most popular applications of QSFP-40G-CU3M (02310MUH) compatible 40G Passive Twinax Cable are cost effective close range interconnections within equipment room of telecom operators or data centers, interconnecting LAN or SAN applications with speeds up to 40G.

Media Type: Twinax Cable
DAC Copper Type: AWG30
Maximum Distance: 3m
Supported Data Rate: 2.125-41.2 Gbps
Supported Applications: 4 x InfiniBand QDR (32Gbps), 4 x InfiniBand DDR (16Gbps), 4 x InfiniBand SDR (8Gbps), 40G Ethernet (41.25Gbps), 10G Ethernet (10.31Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps)
DDM/DOM: Supported
Temperature Range: Standard 0°-70°C
Connectors: QSFP
Power: +3.3V single power supply
Power Consumption: 0.02W
MTBF: 1 000 000 Hours
Compliance: CE, IEEE 802.3ba, QDR InfiniBand, QSFP+ MSA, RoHS, SFF-8436
Transceiver Type: DAC
