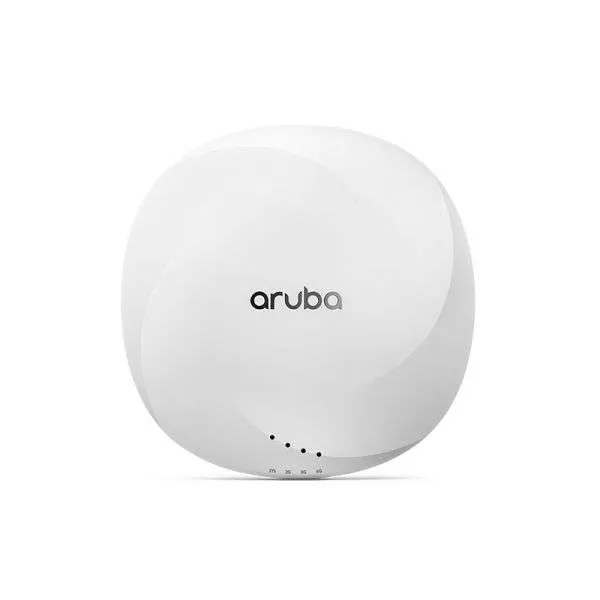

R7J27A

Sale!

R7J27A

$520.00

The 630 Series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 Series maximizes performance for low-latency, bandwidth-hungry applications. Aruba’s ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 Series includes dual port hitless failover for ethernet and power.

Quick Specs

Table 1 shows the Quick Specs.

Product Code R7J27A
Ports  E0, E1: Two Ethernet wired network ports (RJ-45)
Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
2.5Gbps speed complies with NBase-T and 802.3bz specifications
POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)
Connectivity, standard  WLAN: tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
Input voltage  12 Vdc (+/- 5%) or 48 Vdc (nominal) POE
Power Consumption  23.8W worst case (POE powered), 20.7W worst case (DC). Excludes power needed to supply up to 5W to an attached USb device.
Radio coverage  Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
Product Dimensions (metric)  220mm (W) x 220mm (D) x 50mm (H)

Product Details

R7J27A provides these features:

More capacity and wider channels with Wi-Fi 6E

  • Aruba 630 Series APs deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
  • With up to seven 160 MHz channels, the APs maximize performance for low-latency, bandwidth-hungry applications.
  • Designed for Low Power Indoor environments (LPI).

Less interference and fewer coverage gaps

  • Aruba 630 Series APs provide comprehensive tri-band coverage using three radios.
  • Aruba’s unique ultra tri-band filtering eliminates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
  • Since only Wi-Fi 6E enabled devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.

Extends capabilities of Wi-Fi 6 (802.11ax) APs

  • Aruba 630 Series APs are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.
  • Unique Aruba capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring optimize user experience and energy use.

Ensures business continuity and high availability

  • High availability with two HPE Smart Rate ethernet ports for 1-2.5 Gbps to offer true hitless failover for both data and power.
  • Cloud, controller, or controllerless operation modes address all campus, branch and remote use cases.
