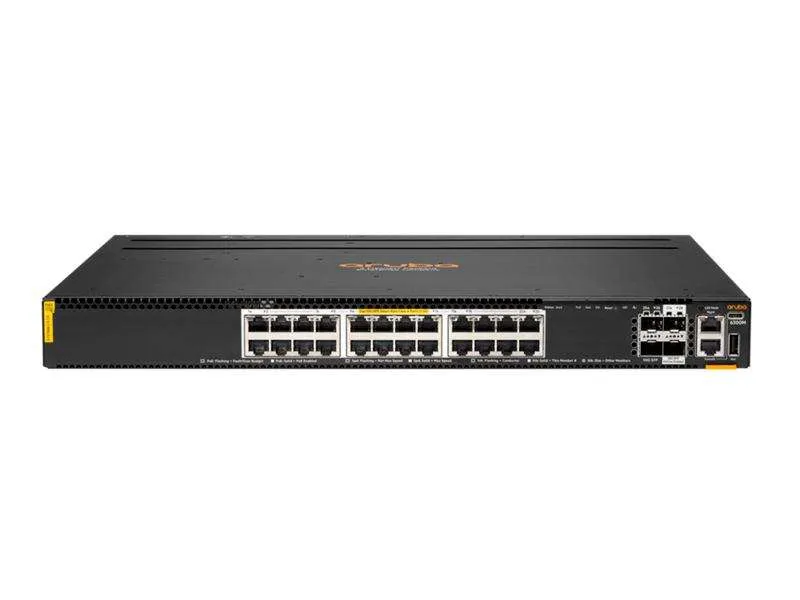

R8S89A

Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. Now supporting MACsec 256, PTP, AVB and LRM.

High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth.

Series includes full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit and up to 90W PoE, SFP+ model and switch bundle with power-to-port airflow for data center 1GbE ToR and OOBM deployments.

Built-in high speed 10GbE/25GbE/50GbE uplinks (50GbE for DAC connectivity only) with intelligent monitoring and visibility via Aruba Network Analytics Engine.

Manage via single pane of glass with Aruba Central across wired, wireless, and WAN. Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.

New Aruba Data Center Networking Solution SKU (R9F63A) for HPE integrated and mixed use HPE compute, storage and Aruba networking configuration and deployments.

Aruba R8S89APerformance and Power

• The Aruba CX 6300 R8S89A Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
• Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in QSFP28 ports support speeds of 1GbE, 10GbE, 25GbE, and 50GbE (50GbE for DAC connectivity only) for a total of up to 200 Gbps of stacking throughput per switch.
• Deploy wireless access points and IoT devices with Aruba CX 6300 models that offer high density HPE Smart Rate multi-gigabit Ethernet with 60W PoE on every port for a total of 2880W of PoE.
• 48 port switch bundle with power-to-port airflow designed for top-of-rack (TOR) and out-of-band-management (OOBM) data center deployments.

• System Switching Capacity:
  • R8S89A, R8S90A, R8S92A: 780 Gbps
  • R8S91A: 720 Gbps
  • JL662A, JL664A: 448 Gbps
  • JL663A, JL762A: 496 Gbps
  • JL665A, JL666A, JL667A, JL668A, JL658A, JL659A, JL660A, JL661A: 880 Gbps
  • S0E91A: 1760 Gbps
• System Throughput Capacity:
  • R8S89A, R8S90A, R8S92A: 580 Mpps
  • R8S91A: 535 Mpps
  • JL662A, JL664A: 334 Mpps
  • JL663A, JL762A: 369 Mpps
  • JL665A, JL666A, JL667A, JL668A, JL658A, JL659A, JL660A, JL661A: 660 Mpps
  • S0E91A: 1310 Mpps
• Stack Size: 10 member using 10G SFP ports
• Max. Stacking Distance: Up to 10 kms with long range transceivers
• Stacking Bandwidth: 200 Gbps (S0E91A: 400 Gbps)
