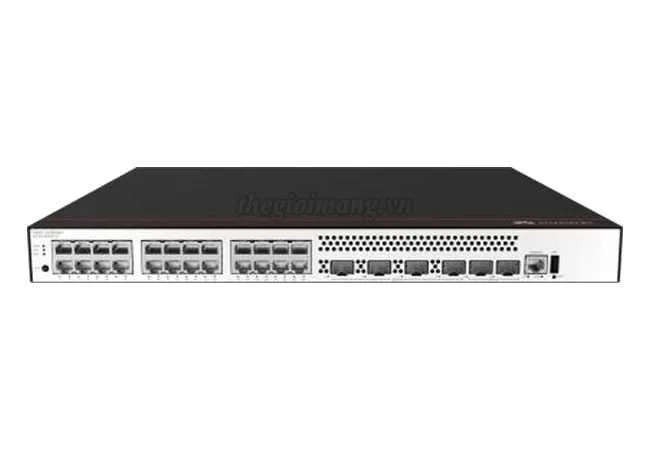

CloudEngine S5735-S24T4XE-V2 : 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports, without power module

S5735-S24T4XE-V2

S5735-S24T4XE-V2

Original price was: $1,000.00.Current price is: $830.00.

Model CloudEngine S5735-S24T4XE-V2
Fixed port 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports,2 stack ports
Dimensions (H x W x D) 43.6 mm x 442 mm x 420 mm
Chassis height 1 U
Chassis weight (including packaging) 11.34 kg
Power supply type • 180 W AC
• 1200 W DC
Rated voltage range • AC input: 100 V AC to 240 V AC, 50/60 Hz
• High-Voltage DC input: 240 V DC
• DC input: -48 V DC to -60 V DC
Maximum voltage range • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-Voltage DC input: 190 V DC to 290 V DC
• DC input: -38.4 V DC to -72 V DC
Maximum power consumption • 52 W (2 *180W AC)
• 81 W (2* 1200W DC)
Noise • Under normal temperature (sound power): 47dB (A)
• Under high temperature (sound power): 51dB (A)
• Under normal temperature (sound pressure): 35dB (A)
Long-term operating temperature • 0-1800 m altitude: 0°C to +50°C
• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Surge protection specification (service port) ±7 kV in common mode
Surge protection specification (power port) • AC power port: ±6 kV in differential mode, ±6 kV in common mode
• DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation Air-cooled heat dissipation and intelligent speed adjustment
