SFP-H10GB-CU5M

Sale!

SFP-H10GB-CU5M

$100.00

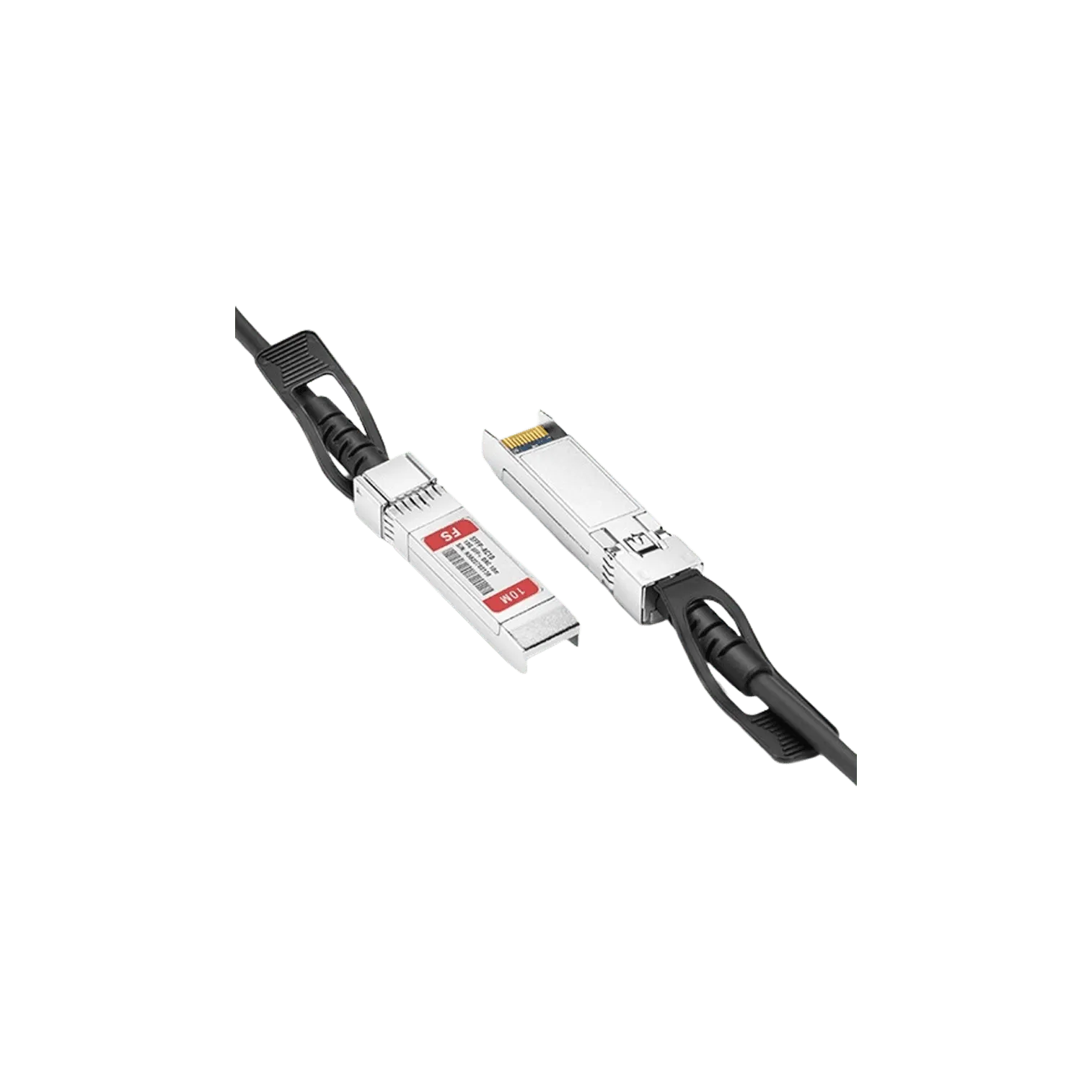

The Cisco® SFP-H10GB-CU5M features a 30 gauge (30AWG) copper cable with a 10GBase SFP+ fiber optic connecter on each end, allowing for excellent EMI protection and dependable performance. DAC cables are energy efficient with low latency connections, making them ideal for use in a wide array of 10Gbase Ethernet applications.

Specification

  OEM Part Number SFP-H10GB-CU5M   Optcore Part Number SFP-10G-DAC-P5M-CSC
  Form Factor SFP+ DAC Cable   Data Rate 10.5Gb/s
  Passive or actively equalized  Passive   Supply Voltage 3.3V
  Length 5 m   Impedance 100 Ω
  Type Twinax   Wire Gauge 24AWG
  Minimum cable bend radius 35 mm   Cable Jacket Type PVC
  Connector SFP+/SFP+   Digital Diagnostic Monitoring N/A
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight 0.4 kg
  Application Storage Area Networks( SAN)Network Attached Storage

Switched fabric I/O

High density connections between networking equipment

Data center cabling infrastructure

  Compliance SFF-8472,SFF-8431IEC/EN 61000-4-2

MIL-STD -883E, RoHS
