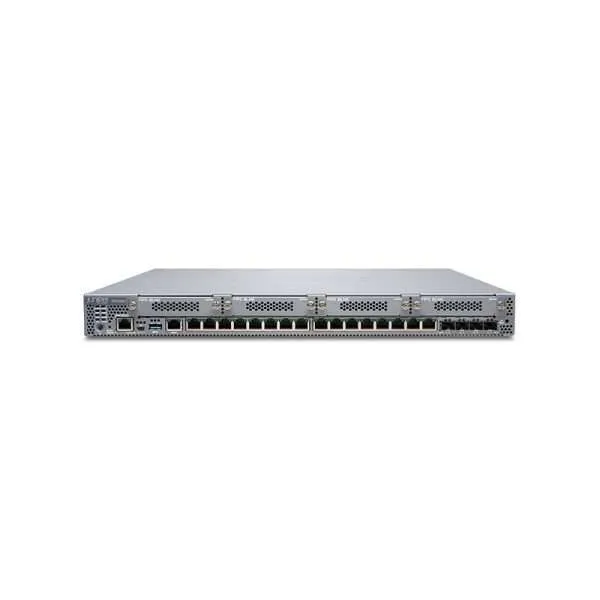

SRX380-P-SYS-JB-AC Juniper Networks SRX380 security appliance.The SRX300 line of services gateways delivers a next-generation security, networking, and SD-WAN solution that helps you support the changing needs of your cloud-enabled enterprise network.

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX380
Packaged Quantity :1
Airflow Direction :Front to back airflow
Installed Size :4 GB
Hard Drive
Type :SSD
Capacity :100 GB
Performance :Routing (IMIX): 5 Gbps, Throughput (64-byte packet size): 1700 Kpps, Firewall throughput (IMIX): 4 Gbps, IPS throughput: 2 Gbps, Connection rate: 50000 connections per second, VPN throughput (1400 B IPSec): 3.5 Gbps, Routing throughput (1518-byte packet size): 10 Gbps, Application control (AVC) throughput: 6 Gbps, VPN throughput (IMIX IPSec): 1 Gbps, NGFW throughput: 1 Gbps
Capacity :Virtual routers: 128, Security zones: 128, Virtual interfaces (VLANs): 3000, IPSec VPN tunnels: 2048, Security policies: 4000, IPv6 routing table entries: 600000, Maximum number of NAT rules: 3000, GRE tunnels: 2048, IPS sessions: 64000, Concurrent sessions: 380000, AppID sessions: 64000, URLF sessions: 64000, IPv4 routing table entries: 1000000, MAC addresses: 16000
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :MLFR, PPP, HDLC, Ethernet, Frame Relay, MLPPP, Fast Ethernet, Gigabit Ethernet
Routing Protocol :ECMP, RIP-1, PIM-SM, MSDP, PIM-DM, IS-IS, OSPFv3, BGP, IGMPv2, MPLS, Static IP routing, PIM-SSM, OSPF, VRRP, IGMP, RIP-2, DVMRP
Network / Transport Protocol :RSVP, IPSec, PPPoE, DNS, DHCP, DDNS
Remote Management Protocol :SNMP, SSH, CLI, HTTP, Telnet
Features :DDos attack prevention, IPSec NAT-Traversal (NAT-T), Rapid Spanning Tree Protocol (RSTP) support, Label Distribution Protocol (LDP), DHCP relay, IPv4 support, Spanning Tree Protocol (STP) support, Anti-virus protection, Dead Peer Detection (DPD), Intrusion Prevention System (IPS), PAT support, DHCP server, DiffServ Code Point (DSCP) support, Quality of Service (QoS), Inspect SSL Encrypted Traffic, LLDP support, Generic Routing Encapsulation (GRE), Firewall protection, DHCP client, URL filtering, J-Flow, Front to back airflow, Virtual Private LAN Service (VPLS), MACsec support, Anti-spam protection, VPN support, IPv6 support, Weighted Random Early Detection (WRED), NAT support
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 2.0 – Type A, 4 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 1 x console – RJ-45, 1 x management – RJ-45, 16 x 1000Base-T – RJ-45
OS Provided
Type :Junos Software Base
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Consumption Operational :150 watt
Color Category :Gray
Included Accessories :Rack mount kit
Height (Rack Units) :1
Encryption Algorithm :IKE, Triple DES, 256-bit AES, IKEv2, SHA-1, 256-bit SHA, MD5, PKI, DES, SSL
Authentication Method :X.509 certificates, Secure Shell (SSH)
MTBF :28.1 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :14.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
