SSG-5049P-E1CTR36L

Sale!

SSG-5049P-E1CTR36L

Original price was: $16,000.00.Current price is: $13,600.00.

Database Processing & Storage Appliance Platform. 2x 10GBase-T with Intel X557, 36x Hot-swap 3.5″ SAS/SATA Drive Bays. Redundant Power Option.

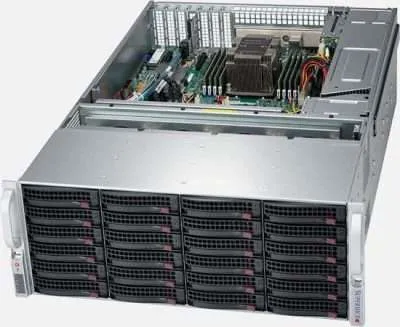

Supermicro SuperStorage 5049P-E1CTR36L | SSG-5049P-E1CTR36L
BIOS
BIOS type UEFI AMI
Design
Fan diameter 8 cm
Form factor 4U
LED indicators HDD,Heating,Network,Power,Power fail
Number of fans 7 fan(s)
On/off switch Y
Product colour Black
RoHS compliance Y
Expansion slots
PCI Express slots version 2.0, 3.0
PCI Express x16 slots 1
PCI Express x4 slots 1
PCI Express x8 slots 2
Graphics
On-board graphics adapter model Aspeed AST2500
Memory
Maximum internal memory 1000 GB
Maximum RDIMM memory 192 GB
Number of DIMM slots 8
Supported memory types DDR4-SDRAM
Supported RDIMM clock speeds 2133,2400,2666 MHz
Networking
Copper ethernet cabling technology 10GBASE-T
Ethernet LAN Y
LAN controller Intel® X557, Intel® X722
Operational conditions
Operating relative humidity (H-H) 8 – 90%
Operating temperature (T-T) 10 – 35 °C
Storage relative humidity (H-H) 5 – 95%
Storage temperature (T-T) -40 – 60 °C
Performance
Backplanes support Y
PC health monitoring CPU,FAN,Temperature
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
IPMI LAN (RJ-45) port Y
Serial ports quantity 1
USB 2.0 ports quantity 2
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1
Power
Number of redundant power supplies installed 2
Power supply 1200 W
