SSN1EMS4

Sale!

SSN1EMS4

Original price was: $20,540.00.Current price is: $17,600.00.

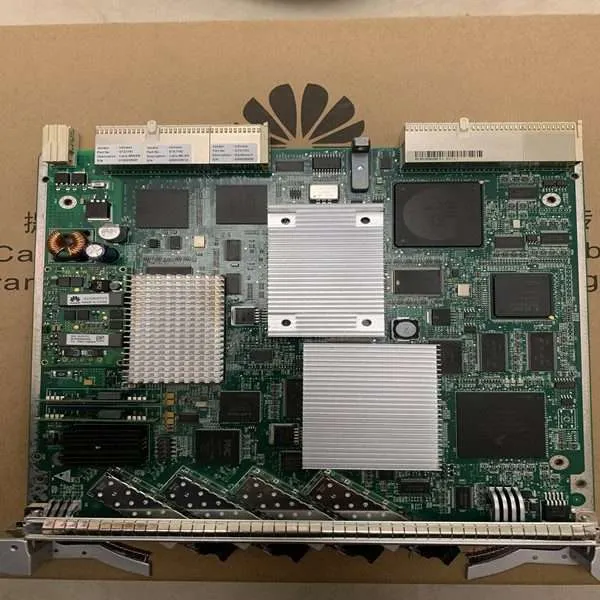

Huawei SSN1EMS4 Board is an Ethernet switching processing board , which is mainly used to solve telecommunication application fields such as Ethernet service access , bandwidth management , and Ethernet service layer 2 switching . A typical networking application of the Ethernet switch processing board is shown in Figure 1. It can implement Ethernet access and aggregation ,

SSN1EMS4

Original price was: $20,540.00.Current price is: $17,600.00.

basic functions Handle 4 GE services and 16 FE services.
interface type Support 1000BASE-SX / LX / ZX / VX Ethernet optical interface, support auto-negotiation function, comply with IEEE802.3z standard. Using a pluggable SFP optical interface, the transmission distance is up to 550 meters for multi-mode fiber and 10 km for single-mode fiber (40 km and 80 km optical modules can also be selected according to actual needs)
Support for 1000BASE-T Ethernet electrical interface. The electrical interface supports the auto-negotiation function, which can auto-negotiate to the rate of 1000 million. Using hot-plug SFP electrical interface, the transmission distance can reach up to 100 meters.
with an outlet panel Use with ETF8 to support 10BASE-T / 100BASE-TX; Use with EFF8 for 100Base-FX support.
Comply with the IEEE802.3u standard.
Collaboration with ETF8 to realize access to 16-channel FE electrical signals.
Collaboration with EFF8 to realize 16-channel FE optical signal access.
Cooperate with ETF8 and EFF8 to achieve 8 FE electrical signals and 8 FE optical signals.
interface properties operating mode GE optical port: supports auto-negotiation and 1000M full duplex.
The GE power port supports auto-negotiation and 1000M full duplex.
When using EMS4 with ETF8, it supports auto-negotiation, 100M full duplex, 100M half

Duplex, 10M full duplex, and 10M half duplex.

EMS4 supports 100M full duplex when used with EFF8.
Port flow control Automatic negotiation
No self-negotiation
Exit mode query/configuration support
Query interface type support
Setting the optical power threshold unsupportive
Pluggable optical module Supports SFP pluggable optical module
