SSN1ETF8

Sale!

SSN1ETF8

$12,500.00

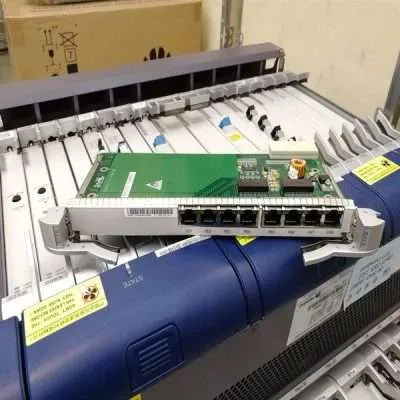

Huawei SSN1ETF8 Board is a data type electrical signal outgoing board. It is applied to OptiX OSN series equipment to implement the 100M Ethernet electrical signal input and output interface of the data board. Functions and features
The ETF8 board is used to input and output eight 100M Ethernet electrical signals. It needs to be used with an Ethernet processing board.

Panel Interface Interface Type Purpose
FE1 ~ FE8 RJ-45 Input the 1 ~ 8 Ethernet electrical signals.
Front view Pin Description
1 Send positive
2 Send negative
3 Receiving positive
4 Ground
5 Ground
6 Receiving negative
7 Ground
8 Ground
Slots for EFT8 / EFS0 / EMR0 Boards Slots for ETF8 Boards
slot 2 slot 19
slot 3 slot21
slot 17 slot35
slot 18 slot37
Slots for EMS4 boards Corresponding slots for ETF8 boards
slot 2 slot 19、20
slot 3 slot 21、22
slot 17 slot 35、36
slot 18 slot 37、38
Technical index
ETF8 board specifications include electrical interface specifications, mechanical specifications, and power consumption.
