VS-S2T-10G-XL

Sale!

VS-S2T-10G-XL

$3,050.00

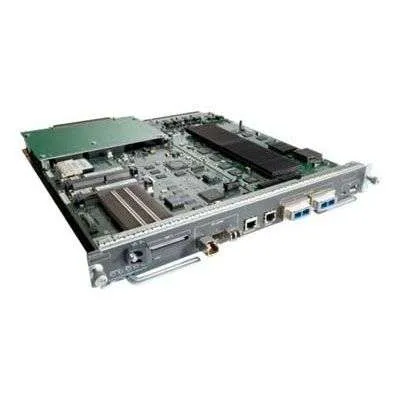

VS-S2T-10G-XL is Cisco Catalyst 6500 Series Supervisor Engine 2T XL. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-Series Chassis. This VS-S2T-10G-XL is similar with the VS-S2T-10G-XL=. The VS-S2T-10G-XL= is a spare one.

Product Code VS-S2T-10G-XL
Chassis compatibility  Supported on all Catalyst 6500 E-series chassis and Catalyst 6807-XL chassis
Switch fabric 2.08 Tbps Crossbar Switch Fabric with 26 Fabric Channels
Software compatibility 12.2(50)SY
Uplink ports (PORT 1 through PORT 5) ·Five uplink ports:

·Two 10GBASE-X ports
·Three 1000BASE-X ports
·Each uplink port has a link LED associated with it.

Console ports One console port (RJ-45)
Compact Flash 1GB
DRAM  2GB for Lite and XL (4GB upgrade with 2GB memory upgrade (2+2)
NVRAM 4 MB
switching capacity up to 80 Gbps per slot of switching capacity on E-Series chassis
Routes 1024K (IPv4)

512K (IPv6)

Netflow entries 512K
Layer-3 classification and marking access control entries (ACEs) 256K shared for QOS/Security
Layer 2 rate limiters 20 ingress/6 egress
Security ACL entries 256K shared for QOS/Security
Power requirement (at 42 VDC) 10.71 A
Dimensions (H x W x D) 1.73 x 14.4 x 16.0 in. (4.4 x 36.6 x 40.6 cm). Occupies one slot in the chassis
Weight 12.0 lb (5.44 kg)
