WS-C2960CX-8TC-L
WS-C2960CX-8TC-L
$790.00

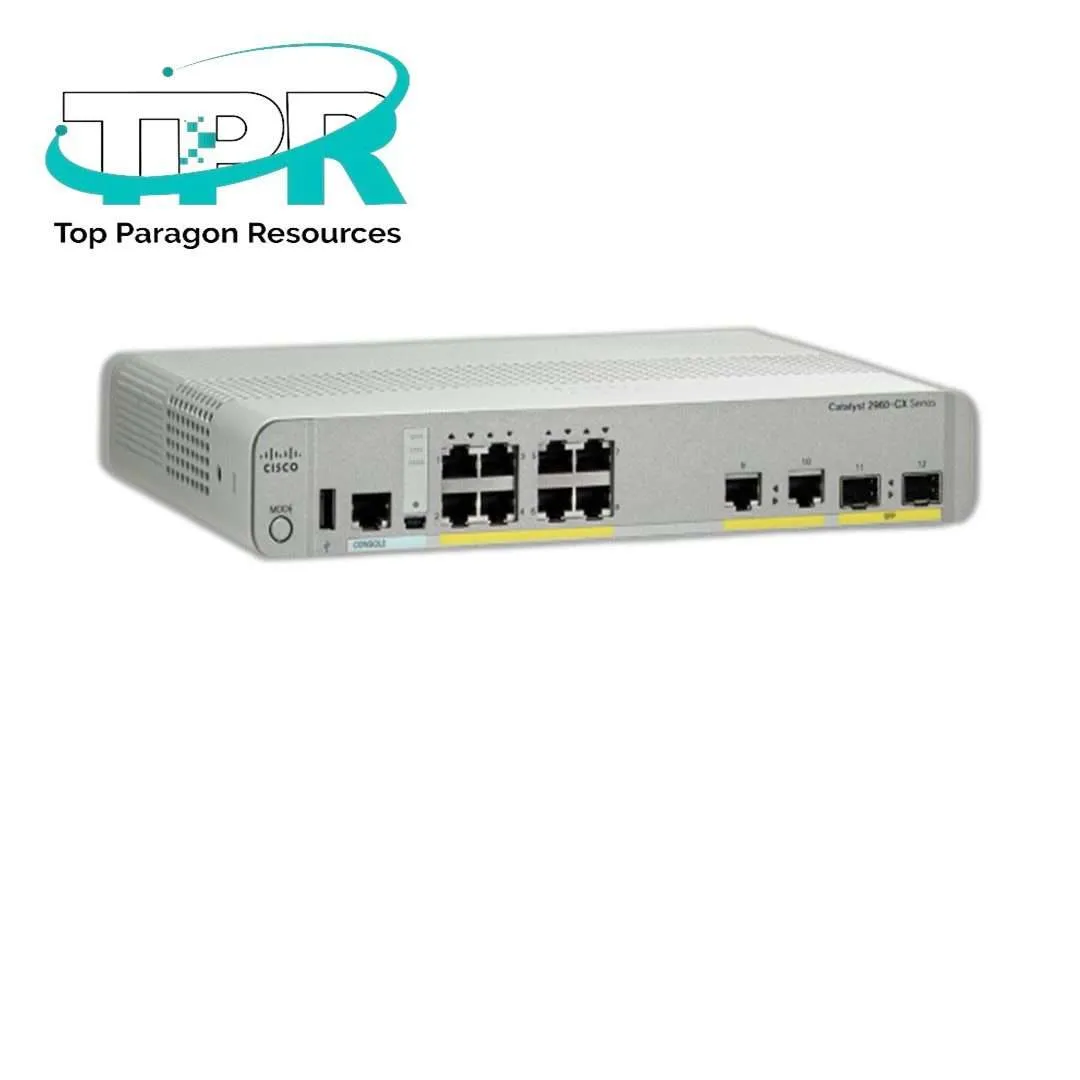

The Cisco Catalyst WS-C2960CX-8TC-L is a smooth, well-run switch, great for work or home setups. It comes with 8 Gigabit Ethernet ports, guaranteeing quick and dependable linkage for a collection of devices. Notably, this switch also boasts 2 x 1G copper uplinks and 2 x 1G SFP uplinks, presenting versatile connection alternatives.
The WS-C2960CX-8TC-L carries Cisco’s LAN Base software, adding layers of security and control. Sporting a super-fast forwarding speed of 12 Gbps and a switching capacity of 24 Gbps, it offers top results for busy network settings. A streamlined design pairs with a rack-mountable case, easing installation, even when space is at a premium. In addition, the switch provides advanced control over power and can handle big data packets. It’s perfect for companies needing potent, scalable network solutions. The Cisco switches also come with easy-to-view signs of link quality, speed, and overall system health. That allows for simple monitoring of network performance.
WS-2960CX-8TC-L Specification |
|
| Ethernet Ports | 8 x 10/100/1000 Gigabit Ethernet |
| PoE Output Ports |
N/A |
| Available PoE Power |
N/A |
| Uplinks | 2 x 1G copper plus
2 x 1G SFP |
| Default Software | LAN Base |
| Forwarding Bandwidth | 12 Gbps |
| Switching Bandwidth (full-duplex capacity) | 24 Gbps |
| Flash memory | 128 MB |
| Memory DRAM | 512 MB |
| Max VLANs | 255 |
| VLAN IDs | 4000 |
| Maximum transmission unit (MTU) | Up to 9000 bytes |
| Jumbo frames | 9198 bytes |
| Forwarding rate 64 Byte Packet | 17.9 mpps |

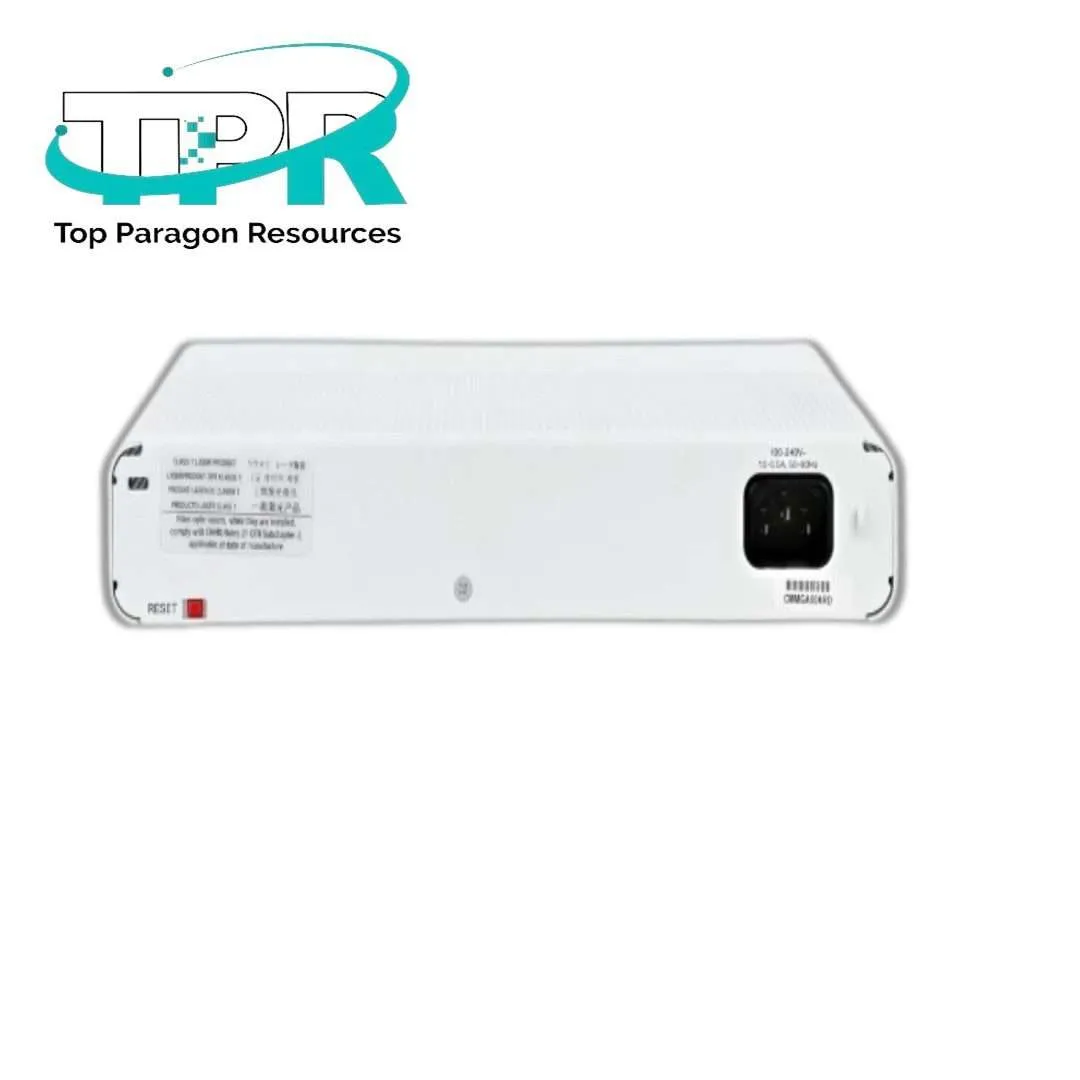

| Power connectors | – Customers can provide power to a switch by using the internal power supply.
The connector is located at the back of the switch. The internal power supply is an auto ranging unit – The internal power supply supports input voltages between 100 and 240VAC |
| Indicators | Per-port status: Link integrity, disabled, activity, speed, full-duplex
System status: System, link status, link duplex, link speed |
| Dimensions (H x W x D) |
1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3 cm) |
| Weight | 3.8 lb (1.72 Kg) |
| Package Weight | 9.66 lb (4.38 Kg) |
| Operating* temperature up to 5000 ft (1524 m) | -5°C to +45°C
(+23°F to +113°F) |
| Operating* temperature up to 10,000 ft (3048 m) | -5°C to +45°C
(+23°F to +113°F) |
| Storage temperature up to 15,000 ft (4572 m) | -25°C to +70°C
(-13°F to +158°F) |
| Operating altitude | Up to 3048 m
(Up to 10,000 ft) |
| Storage altitude | Up to 4000 m
(Up to 15,000 ft) |
| Operating relative humidity | 5% to 95% noncondensing |
| Storage relative humidity | 5% to 95% noncondensing |
| Mean time between failure (MTBF) | 756,260 |
WS-C2960CX-8TC-L Features
The Cisco Catalyst 2960CX-8TC-L offers:
- Compact Design: Fits into tight spaces while providing full network functionality.
- Flexible Uplinks: 2 x 1G copper plus 2 x 1G SFP interfaces.
- High Performance: With a forwarding rate of 17.9 mpps, ensuring fast data transmission.
This switch is ideal for both businesses and homeowners looking for secure, high-performance networking.
Are you Curious About the Forwarding Bandwidth of the Cisco Catalyst 2960CX-8TC-L?
Well, this awesome device boasts a forwarding bandwidth of 12 Gbps. This means it’s perfect for quick and dependable data transfer.
What’s the Grip on Energy Control for this Switch?
The WS-C2960CX-8TC-L has a built-in power source. It uses Cisco EnergyWise tech for smart power use.
