WS-C3850-12S-S

Sale!

WS-C3850-12S-S

Original price was: $4,000.00.Current price is: $2,840.00.

Cisco Catalyst WS-C3850-12S-S is the next generation enterprise-level stackable switch that is integrated with 12 SFP ports in IP base feature set.

WS-C3850-12S-S

WS-C3850-12S-S

Original price was: $4,000.00.Current price is: $2,840.00.

Product Code    WS-C3850-12S-S
Feature Set IP base
Enclosure Type 1 RU
Network SFP uplink module selection C3850-NM-4-1G



C3850-NM-2-10G

Ports 12 ports of SFP Ethernet fiber connection with Flexible Net flow feature
Maximum stacking number 9
Stack bandwidth 480Gbps
Forwarding Performance 68.4Mpps
Switching Capacity 68Gbps
RAM 4 G
Flash Memory 2 G
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Dimensions 44.5 cm x 45.0 cm x 4.45 cm
Package Weigh 17.49 Kg

 Cisco Catalyst WS-C3850-12S-S



Cisco Catalyst WS-C3850-12S-S
Cisco Catalyst WS-C3850-12S-S

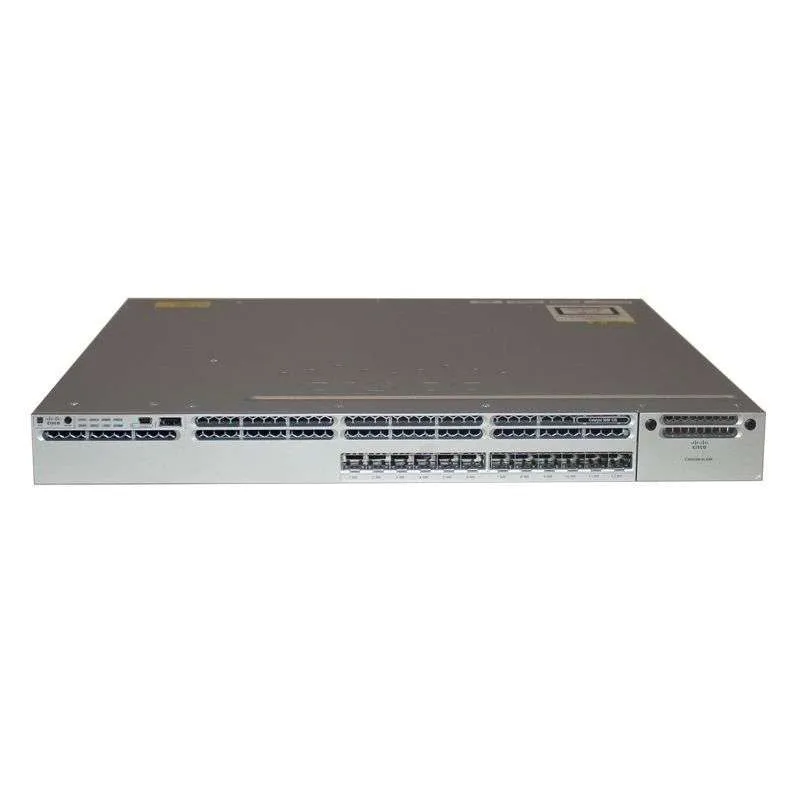

Font Panel of the Cisco 3850/12 Series 12 Ports Switch



ws-c3850-12s-s_front_panel
ws-c3850/12s-s_front_panel

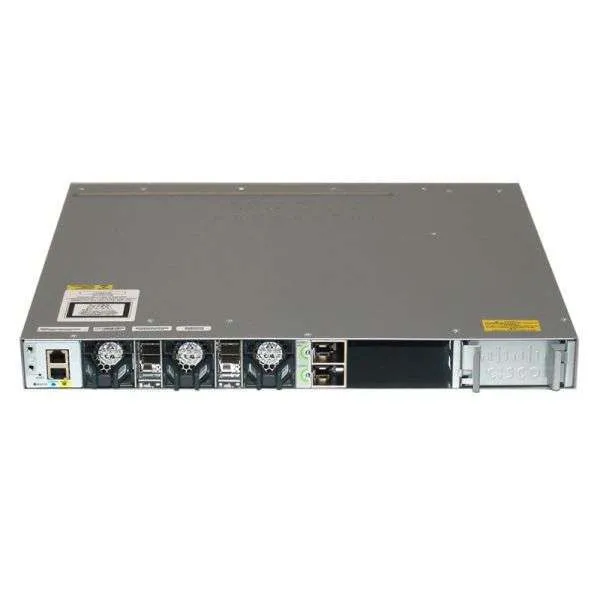

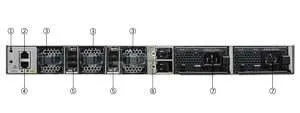

Back Panel of the Cisco 3850/12 Series 12 Ports Switch



Back Panel of the Cisco 3850/12
Back Panel of the Cisco 3850/12

StackWise-480 and Stack Power Connectors.

In order to stacking with LAN base feature set, WS-C3850-12S-S require to configure in LAN base mode from CLI.

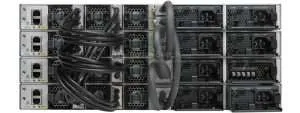

Stackwise-480
View of WS-C3850-12S-S/ Stackwise-480



Modules, Licenses and Accessories

Models Description
C3850-NM-4-1G Cisco 3850 Series 4 x 1GE Network Module
C3850-NM-2-10G Cisco 3850 Series 2 x 10GE Network Module
L-C3850-12-S-E= C3850-12 IP Base to IP Services Electronic RTU License
PWR-C1-350WAC Cisco 3850 Series Power Supply 350W AC
PWR-C1-350WAC/2 Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply
STACK-T1-50CM= Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch
STACK-T1-1M= Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

WS-C3850-12S-S Specification



C3850/12 Specification



model info: WS-C3850-12S-S
enclosure type Rack-mountable – 1U
Ports 12 x SFP ports
Network management Interface ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power None
Switching Capacity 68Gbps
Maximum stacking number 9
Stack Bandwidth 480Gbps
Forwarding Performance 68.4Mpps
FNF entries 48,000 flows
Maximum VLANs IDs 1,000
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection ● C3850-NM-4-1G: 4 x 1G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) ●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply – redundant – plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 109.75 (Max)
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 17.7 Inches (45.0 cm)
Height 1.75 Inches (4.45 cm)
Weight 15.48 Pounds (7.02 Kg)
Rack Mounting Kit optional
 MTBF in hours 315,840
Compliant Standards ● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
System software / license
System software IOS IP Base (Upgradable)
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Software license ●C3850-12-S-E: IP Base to IP Services RTU paper license

●L-C3850-12-S-E: IP Base to IP Services RTU electronic license

Access Point Licenses ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Features ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP

● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast  ●Dynamic Trunking Protocol (DTP) ● port CoS Trust

and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies

● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority

Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS

and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency

● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  ● VRF-lite  ● PIM-SM/DM,

PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN  ●Router and VLAN ACLs  ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
●  Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security
Management ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB
●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB
Technical Support and Services ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m) 23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m) 23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m) 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45º)
Storage environment  -40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing

Questions & Answers

Can both console ports be used simultaneously?

No.

What management ports are available on the Cisco Catalyst 3850?

The Cisco Catalyst 3850 are available with a 10/100 Ethernet dedicated management port on the backside of the switch right above the console port.

Does WS-C3850-12S-S support LAN Base?

No, it doesn’t. SFP models WS-C3850-12S, WS-3850-24S and SFP+ models WS-C3850-12XS, WS-C3850-16XS, WS‑C3850-24XS, WS-C3850-32XS, and WS-C3850-48XS support IP Base and IP Services only.

Can the Cisco Catalyst 3850 act as a wired switch?

The Cisco Catalyst 3850 switch can act as a wired switch as well as a converged wired wireless switch.
