Cisco-GLC-LH-SM
Cisco-GLC-LH-SM
Original price was: $30.00.$28.00Current price is: $28.00.
Cisco GLC-LH-SM Compatible 1000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM) Part Number SFP-1G-LX (10km)Vendor Name Top Paragon Resource Form Factor SFP Data Rate1.25Gbps Wave length 1310nm Distance 10km Connector LC Duplex Cable Type OS2 SMF Transmitter Type FP Receiver Type PINTX Power-9.
GLC LH SM is the 1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers. The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.
|
Brand |
Cisco |
|
Item Number |
GLC-LH-SMD= |
| EAN | 882658340901 |
| Equivalent | Nee |
| SFP-type | SFP |
|
Transfer rate |
1 Gigabit (1000 Mbps) |
| Singlemode of multimode | Singlemode |
| Connectortype | LC |
|
Number of fibers |
2 – Duplex |
|
Maximum distance |
10000 meter |
|
TX value |
1310nm |
|
RX value |
1310nm |
| Min. temperature | -5°C |
| Max. temperature | 85°C |
GLC-LH-SM (1000BASE-LX/LH) Specifications
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km) | Operating Distance (m) |
| 1000BASE-LX/LH | 1310 | MMF | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) | |||
| 50 | 500 | 550 (1,804 ft) | |||
| SMF | – | – | 10,000 (32,821 ft) |
Comparison between GLC-LH-SMD and GLC LH SM
| Item | GLC-LH-SMD | GLC-LH-SM |
| Product Category | 1000BASE-LX/LH | 1000BASE-LX/LH |
| Wavelength (nm) | 1310 | 1310 |
| DOM Function | Yes
Digital Diagnostics Monitoring This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. |
No |
GLC-LH-SM Specifications
GLC-LH-SM Specifications |
|||||
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
| 1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) | |||
| 50 | 500 | 550 (1,804 ft) | |||
| SMF | -** | – | |||
RELATED PRODUCTS
Related products
-
Transceivers
Cisco-QSFP-40G-SR4
Original price was: $250.00.$190.00Current price is: $190.00. Add to cart -
Transceivers
Cisco-SFP-10/25G-LR-S
Original price was: $750.00.$520.00Current price is: $520.00. Add to cart -
Transceivers

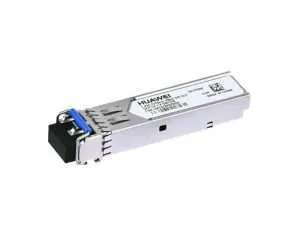

Huawei-SFP-GE-SX-C
