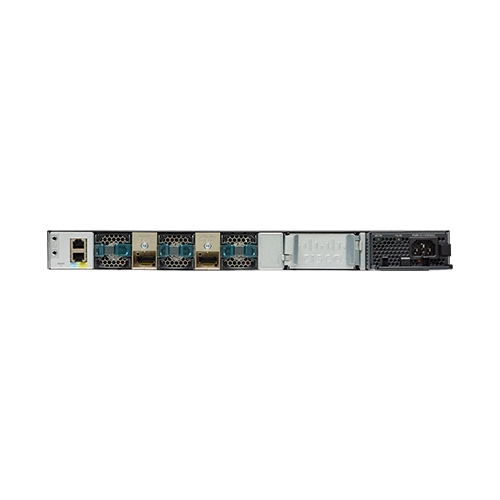

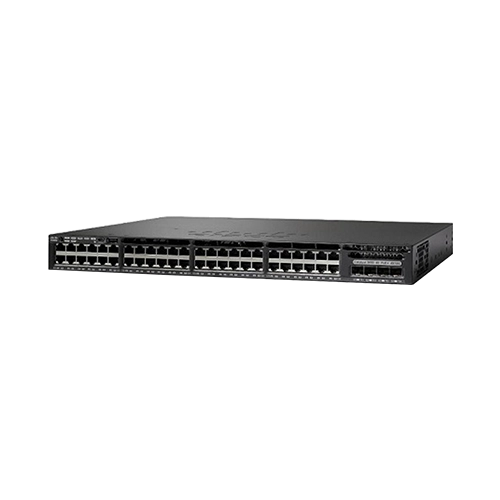

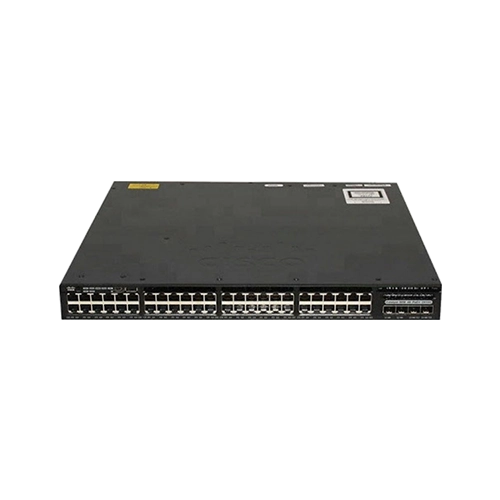

C1-WS3650-48TS/K9

C1-WS3650-48TS/K9

$993.00

C1-WS3650-48TS/K9

The Cisco Catalyst 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application- specific integrated circuit (ASIC)

General
Device Type Switch – 48 ports – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x SFP
Performance Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, active, status
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 4 x 1000Base-X SFP uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 250 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF 527,580 hours
Dimensions & Weight
Width 17.5 in
Depth 17.6 in
Height 1.7 in
Weight 15.9 lbs
Manufacturer Warranty
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 96% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
