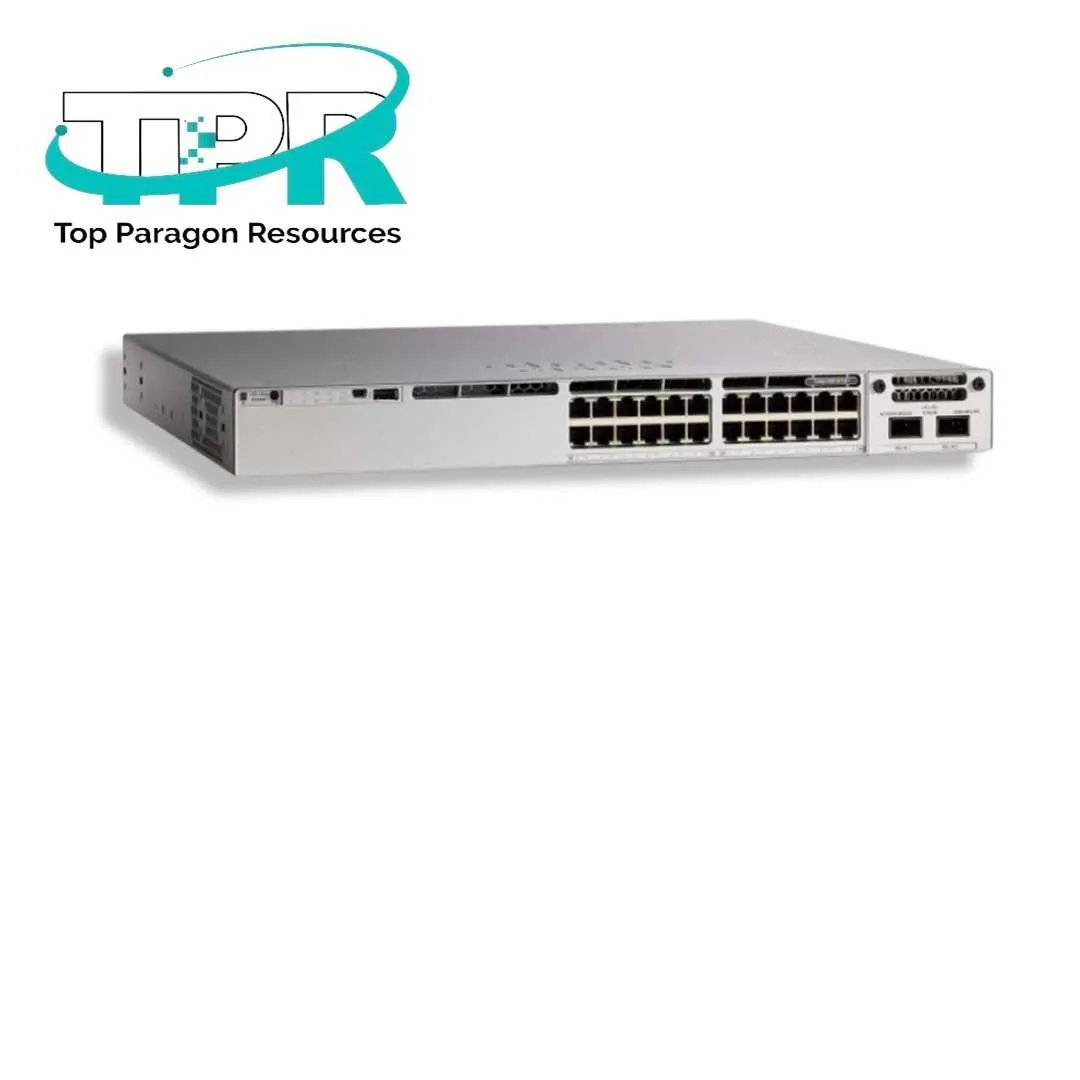

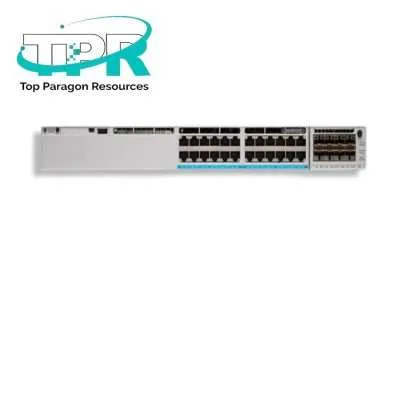

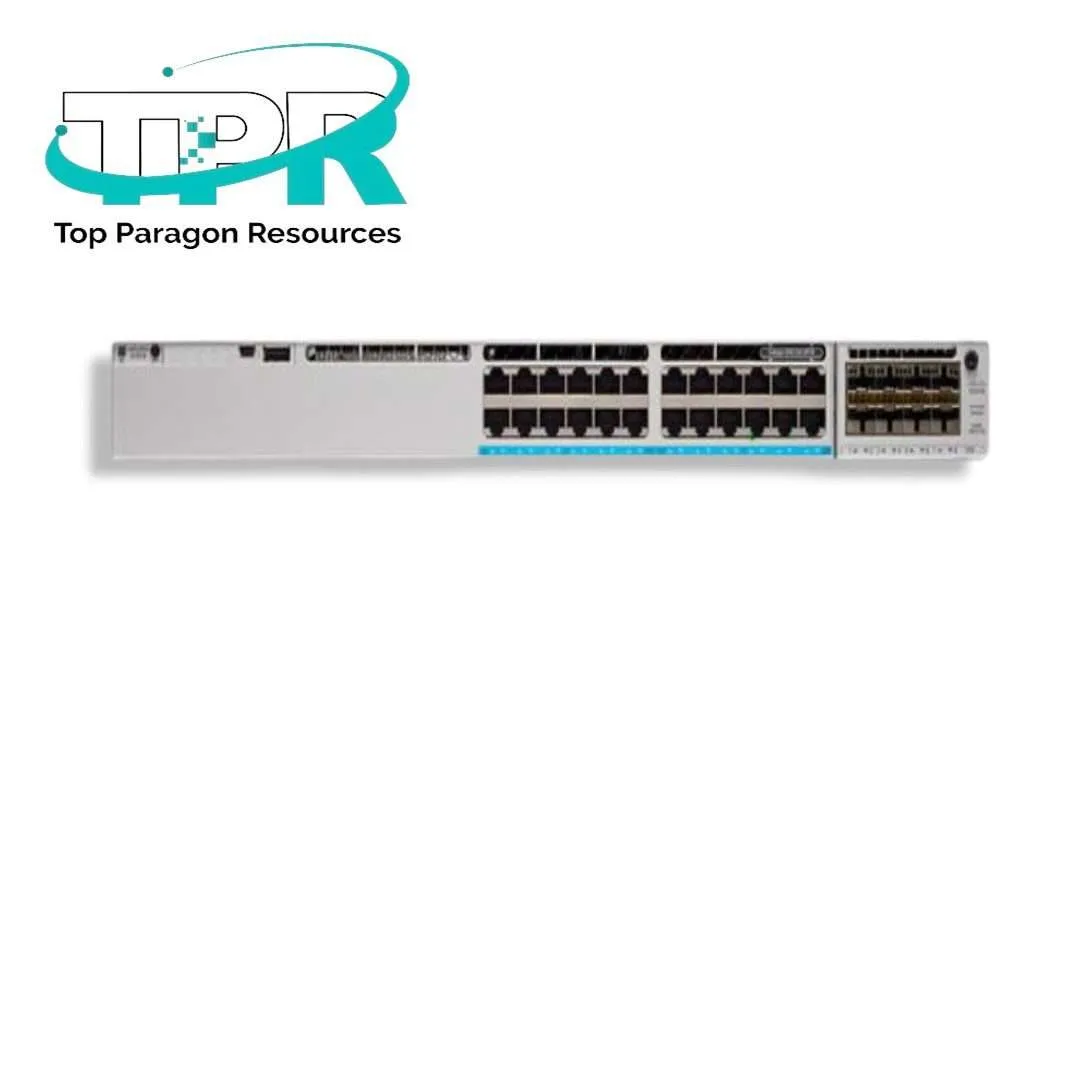

C9300-24T-A

C9300-24T-A

$2,250.00

Cisco Catalyst C9300-24T-A 24 Port Gigabit Switch – Network Advantage. The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable project switching platform built for security, IoT, mobility, and cloud. C9300-24T-A is 24-port data only, Network Advantage Switch of 9300 series.

C9300-24T-A

C9300-24T-A

$2,250.00

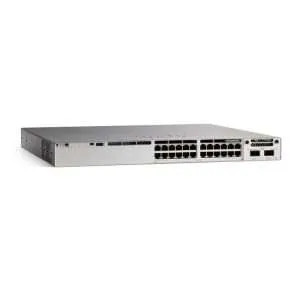

Appearance of C9300-24T-A

cisco-c9300-24-t-A Appearance
cisco-c9300-24-t-A Appearance



Product Code C9300-24T-A
Product Description Catalyst 9300 24-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24
Default AC power supply 350W AC
Available PoE power
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds

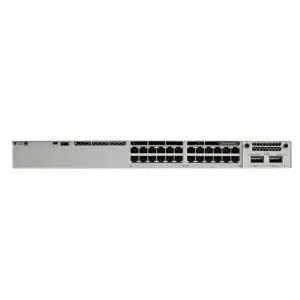

  Front View of C9300-24T-A



cisco-c9300-24-t-A Front View
cisco-c9300-24-t-A Front View
Blue Beacon-for easy of serviceability
optional wireless console access with Bluetooth
Best HA-NSF/SSO
24 1G ports

Recommended Elements for the C9300-24T-A

Product number Description
C9300-NM-4G 9300 Series 4x 1G Network Module
C9300-NM-8X 9300 Series 8x 10G Network Module
C9300-NM-2Q 9300 Series 2x 40G Network Module
C9300-NM-2Q= Catalyst 9300 2 x 40GE Network Module, spare
C9300-NM-4M 9300 Series 4x Multigigabit Network Module
C9300-NM-4M= Catalyst 9300 4 x MGig Network Module, spare



Comparison between C9300-24T-A and C9300-24P-A

Product Code C9300-24T-A C9300-24P-A
Product Description Catalyst 9300 24-port data only, Network Advantage Catalyst 9300 24-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24 24 POE+
Default AC power supply 350W AC 715W AC
Available PoE power 445W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds 16.33 Pounds



C9300-24T-A Specification

C9300-24T-A Specification

Part Number C9300-24T-A
Product Description Catalyst 9300 24-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24
Default AC power supply 350W AC
Available PoE power
Cisco StackWise-480 Yes
Cisco Stack Power Yes
Default power supply PWR-C1-350WAC-P/2
Switching capacity 208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000
Safety certifications ●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions certifications ●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

Environmental Reduction of Hazardous Substances (ROHS) 5

C9300-24T-A-Datasheet
