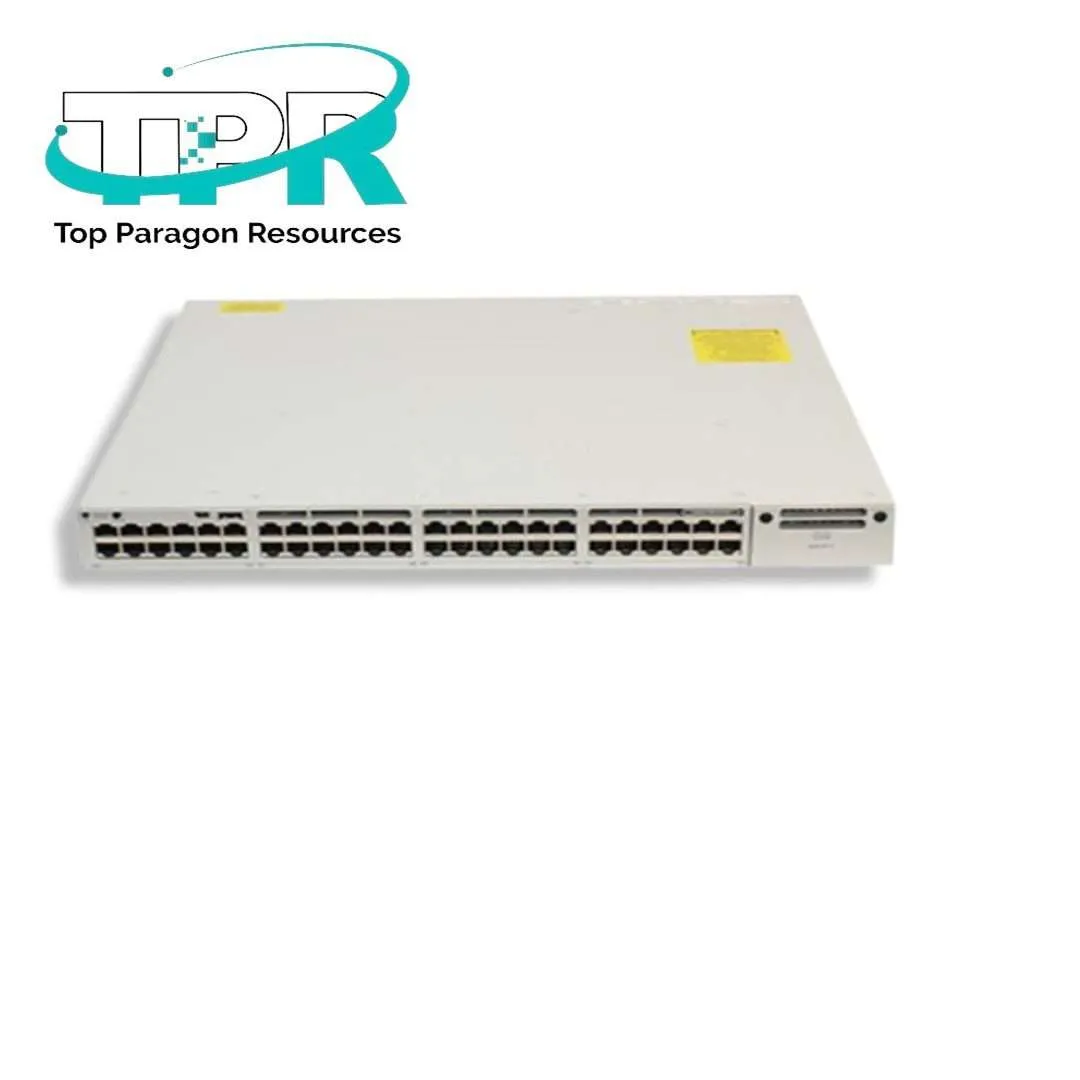

C9300-48P-E

Sale!

C9300-48P-E

Original price was: $3,720.00.Current price is: $3,450.00.

C9300-48P-E is 48-port PoE+, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform.

C9300-48P-E

C9300-48P-E

Original price was: $3,720.00.Current price is: $3,450.00.

Quick Access

Product Code C9300-48P-E
Product Description Catalyst 9300 48-port PoE+, Network Essentials
Total 10/100/1000 or Multigigabit copper ports 48 POE+
Default AC power supply 715W AC
Available PoE power 437W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds

Recommended elements for the C9300-48P-E

Product number Description
C9300-NM-4G 9300 Series 4x 1G Network Module
C9300-NM-8X 9300 Series 8x 10G Network Module
C9300-NM-2Q 9300 Series 2x 40G Network Module
C9300-NM-2Q= Catalyst 9300 2 x 40GE Network Module, spare
C9300-NM-4M 9300 Series 4x Multigigabit Network Module
C9300-NM-4M= Catalyst 9300 4 x MGig Network Module, spare

 Comparison between C9300-48P-E and C9300-24P-A

Product Code C9300-48P-E C9300-24P-A
Product Description Catalyst 9300 48-port PoE+, Network Essentials Catalyst 9300 24-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48 POE+ 24 POE+
Default AC power supply 715W AC 715W AC
Available PoE power 437W 445W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds 16.33 Pounds



C9300-48P-E Specification

C9300-48P-E Specification

Part Number C9300-48P-E
Product Description Catalyst 9300 48-port PoE+, Network Essentials
Total 10/100/1000 or Multigigabit copper ports 48 POE+
Default AC power supply 715W AC
Available PoE power 437W
Cisco StackWise-480 Yes
Cisco Stack Power Yes
Default power supply PWR-C1-715WAC-P/2
Switching capacity 256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000
Safety certifications ●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions certifications ●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

Environmental Reduction of Hazardous Substances (ROHS) 5

Why Choose Top Paragon Resources?

As a leading network hardware supplier, topparagonresource.com focuses on original new ICT equipment of Cisco, Huawei, Juniper and Fortinet, etc.

Questions and Answers

Q. What is the Cisco C9300-48P-E switch?

A. The Cisco C9300-48P-E is a member of the Catalyst 9300 Series, featuring 48 Power over Ethernet (PoE) ports and designed for high-performance data transfer in enterprise networks.

Q. What are some common use cases for the Cisco C9300-48P-E switch in enterprise environments?

A. The switch is ideal for supporting PoE-enabled devices such as IP phones, wireless access points, and cameras in different project applications.

Q. What are the features of the Cisco Catalyst 9300 48-port PoE+ switch?

A. The Cisco Catalyst 9300 48-port PoE+ switch is provides fast and secure network connectivity with high performance and reliability.

Q. How can I install the Cisco Catalyst 9300 48-port PoE+ switch?

A. The Cisco Catalyst 9300 48-port PoE+ switch can be easily mounted in standard 19-inch equipment racks.

Q. Does the Cisco Catalyst 9300 48-port PoE+ switch support PoE+?

A. Yes, the Cisco Catalyst 9300 48-port PoE+ switch supports Power over Ethernet Plus (PoE+).

Q. Can I upgrade the Cisco Catalyst 9300 48-port PoE+ switch?

A. Yes, the Cisco Catalyst 9300 48-port PoE+ switch supports easy software upgrades through Cisco DNA Software.

Q. Are there any alternative products to the Cisco Catalyst 9300 48-port PoE+ switch?

A. Yes, Cisco offers a range of switches in the Catalyst 9300 series, each with various port density, feature sets, and capabilities.

Q. What common troubleshooting options are available for the Cisco Catalyst 9300 48-port PoE+ switch?

A. The Cisco Catalyst 9300 48-port PoE+ switch provides advanced features, error monitoring, and traffic analysis.
