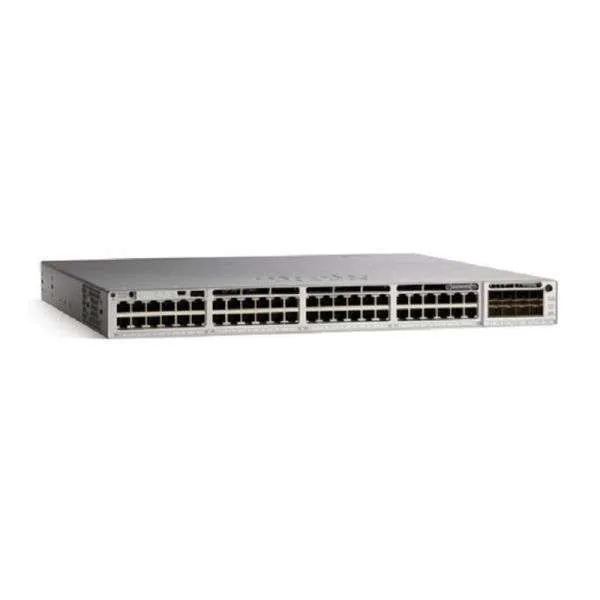

C9300-48UXM-E
C9300-48UXM-E
$3,850.00
The Catalyst 9300-48UXM-E is more than simply a switch. It has 48 ports for 2.5G (12 mGig) UPOE and simple networking. Cisco’s Catalyst 9300 Series ranks as the top business switches. They are an important part of Software-Defined Access (SD-Access), which is Cisco’s main architecture. They offer an impressive 480 Gbps – the highest available stacked speed in the market. The connection methods are flexible. C9300-48UXM-E Catalyst 9300 Series is the first to get high-speed 802.11ac Wave2. They make it possible for networks to get bigger. Cloud, IoT, security, and mobility were considered in their making. A lot of people in the business world use these famous switches.
C9300-48UXM-E is the Catalyst 9300 switch, offering 48-port 2.5G (12 mGig) UPOE, and Network Essentials. Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture.
At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
What are these switches going to do next?
They have everything they need for the near future. They are ready to hold containers now that they have x86 CPU architecture and more memory. Plus, they can run third-party applications and scripts at the switch level.
Features of the C9300-48UXM-E
The Cisco Catalyst 9300 Series switch offers the best in performance and security:
- Cloud integration: Works seamlessly with cloud-based services for easy growth.
- Solid security: Advanced security features protect your network and data.
- 48-port 2.5G UPOE: Makes sure that multiple devices can connect quickly and reliably.
- IoT-ready: Supports the growing integration of IoT devices and networks.
- Network Advantage: Improves security and makes network management easier.
This switch is great for making networks that are safe and work well for both businesses and smart houses.
Quick Spec
| Model | C9300-48UXM-E |
| Total 10/100/1000 or Multigigabit copper ports | 36x 100 Mbps,1G, 2.5G + 12x Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Default AC power supply | 1100W AC |
| Available PoE power | 490W |
| Cisco StackWise-480 | Yes |
| Cisco Stack Power | Yes |
| Switching capacity | 580 Gbps |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| DRAM | 8 GB |
| Flash | 16 GB |
|
Dimensions (H x W x D) Inches |
Chassis only: 1.73 x 17.5 x 19.1
W/ Default Power Supply: 1.73 x 17.5 x 22.2 W/ 1100W Power Supply: 1.73 x 17.5 x 22.2 |
| Model | Description |
| C9300-NM-4G | 9300 Series 4x 1G Network Module |
| C9300-NM-4M | 9300 Series 4 x Multigigabit Network Module |
| C9300-NM-8X | 9300 Series 8x 10G Network Module |
| C9300-NM-2Q | 9300 Series 2x 40G Network Module |
| C9300-NM-2Y | 9300 Series 2x 25G Network Module |
| STACK-T1-50CM= | 50CM Type 3 Stacking Cable |
| STACK-T1-1M= | 1M Type 3 Stacking Cable |
| STACK-T1-3M= | 3M Type 3 Stacking Cable |
| SSD-120G | Cisco pluggable USB3.0 SSD storage |
Compare to Similar Item
| Model | C9300-48UXM-E | C9300-24UX-E |
| Total 10/100/1000 or Multigigabit copper ports | 36x 100 Mbps,1G, 2.5G + 12x Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps) | 24 Multigigabit Cisco UPOE (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Default AC power supply | 1100W AC | 1100W AC |
| Available PoE power | 490W | 560W |
| Cisco StackWise-480 | Yes | Yes |
| Cisco Stack Power | Yes | Yes |
C9300-48UXM-E Specification
| C9300-48UXM-E Specification | |
| General | |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) |
| Power Over Ethernet (PoE) |
UPOE |
| PoE Budget | 490 W |
| Performance | Switching capacity: 580 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 431.54 Mpps |
|
Capacity |
IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible Net Flow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC
Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm |
128-bit AES |
| C9300-48UXM-E Specification | |
|
Features |
Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco Stack Power technology, Flexible Net Flow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wires hark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash Memory |
16 GB |
| Status Indicators |
Status |
| Expansion / Connectivity | |
| Interfaces | 36 x 2.5Gbit LAN RJ-45 UPOE ¦ 12 x 1/2.5/5/10GBase-T UPOE ¦ 1 x USB 2.0 |
| Expansion Slots |
1 (total) / 1 (free) x expansion slot |
| Power | |
| Power Device |
Internal power supply – hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy |
Optional |
| Power Provided |
1100 Watt |
| Voltage Required |
AC 120/230 V (50 – 60 Hz) |
| MTBF | 202,160 hours |
|
Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317, VCCI V-3/2009 Class A |
| Dimensions | |
| Width | 17.5 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Miscellaneous | |
| Service & Support |
Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days |
| Min Operating Temperature |
23 °F |
| Max Operating Temperature |
113 °F |
| Humidity Range Operating |
5 – 90% (non-condensing) |
| C9300-48UXM-E Specification | |
| Min Storage Temperature |
158 °F |
| Max Storage Temperature |
104 °F |
| Humidity Range Storage |
5 – 90% (non-condensing) |
FAQ
Q. Is the Cisco Catalyst 9300 suitable for both business and home networks?
A. Yes, the 9300 Series offers stable and flexible networking for both businesses and smart houses.
Q. What is the use of the Cisco Catalyst 9300 Series switch?
A. The C9300-48UXM-E ensures a secure connection between companies and smart houses. It supports IoT, mobile, and cloud interaction.
For more information about C9300-48UXM-E Datasheet
