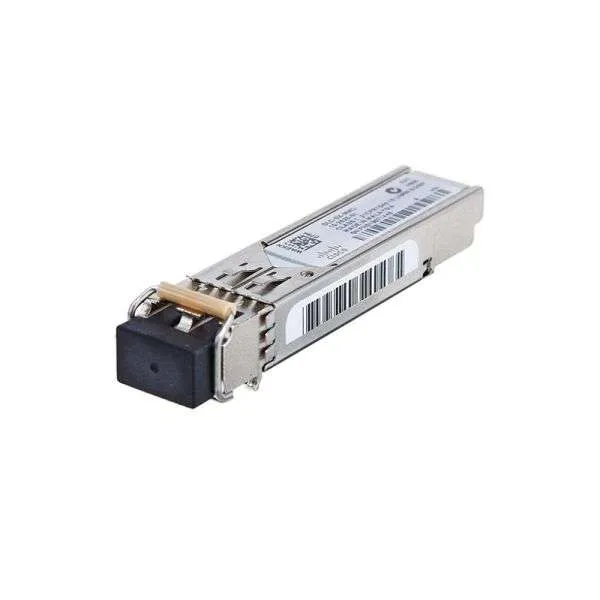

Cisco-GLC-SX-MMD
Cisco-GLC-SX-MMD
Original price was: $20.00.$19.00Current price is: $19.00.
The Cisco-GLC-SX-MMD 1000BASE-SX SFP is made for Multimode Fiber only. The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. GLC-SX-MMD can support up to 1km over laser-optimized 50 μm multimode fiber cable. 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.
| Brand | Cisco |
| Article number | GLC-SX-MMD |
| EAN | 882658340895 |
| Equivalent | no |
| SFP type | SFP |
| Transfer rate | 1 Gigabit (1000Mbps) |
| Single mode or multimode | Multimode |
| Connector type | LC |
| Number of fibers | 2 – Duplex |
| Maximum distance | 550 meters |
| TX value | 850nm |
| RX value | 850nm |
| Min. temperature | -5°C |
| max. temperature | 85°C |
SFP Port Cabling Specifications
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
| 1000BASE-SX
(GLC-SX-MMD) |
850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
| 62.5 | 200 (OM1) | 275 (902 ft) | |||
| 50 | 400 (400/400) | 500 (1,640 ft) | |||
| 50 | 500 (OM2) | 550 (1,804 ft) | |||
| 50 | 2000 (OM3) | 1000 (3281 ft) | |||
| 1000BASE-LX/LH
(GLC-LH-SMD) |
1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) | |||
| 50 | 500 | 550 (1,804 ft) | |||
| SMF | -** | – | 10,000 (32,821 ft) | ||
| 1000BASE-EX | 1310 | SMF | -** | – | 40,000 (131,234 ft) |
| 1000BASE-ZX
(GLC-ZX-SM ) (GLC-ZX-SMD ) |
1550 | SMF | – | – | Approximately 70 km depending on link loss |
| 1000BASE-BX-U | 1310 | SMF | -** | – | 10,000 (32,821 ft) |
| 1000BASE-BX-D | 1490 | SMF | -** | – | 10,000 (32,821 ft) |
GLC-SX-MMD Specification
SFP Port Cabling Specifications |
|||||
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
| 1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
| 62.5 | 200 (OM1) | 275 (902 ft) | |||
| 50 | 400 (400/400) | 500 (1,640 ft) | |||
| 50 | 500 (OM2) | 550 (1,804 ft) | |||
| 50 | 2000 (OM3) | 1000 (3281 ft) | |||
| 1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) | |||
| 50 | 500 | 550 (1,804 ft) | |||
| SMF | -** | – | 10,000 (32,821 ft) | ||
| 1000BASE-EX | 1310 | SMF | -** | – | 40,000 (131,234 ft) |
| 1000BASE-ZX
(GLC-ZX-SMD) |
1550 | SMF | – | – | Approximately 70 km depending on link loss |
| 1000BASE-BX-U | 1310 | SMF | -** | – | 10,000 (32,821 ft) |
| 1000BASE-BX-D | 1490 | SMF | -** | – | 10,000 (32,821 ft) |
