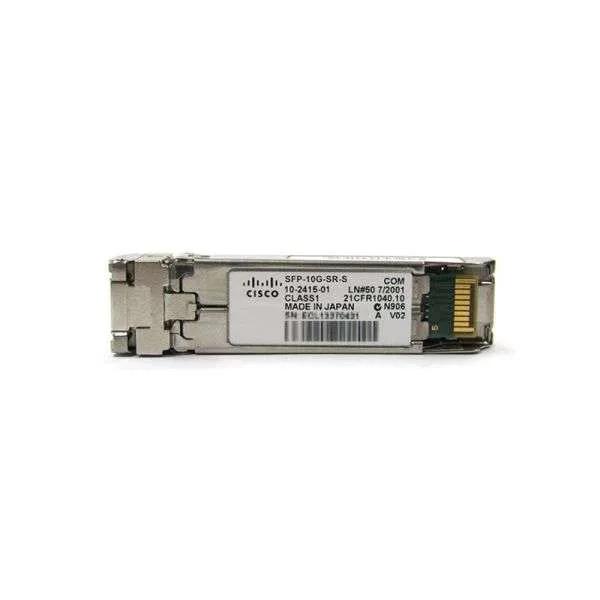

Cisco-SFP-10G-SR-S
Cisco-SFP-10G-SR-S
Original price was: $40.00.$36.00Current price is: $36.00.
The Cisco 10GBASE-SR module SFP-10G-SR-S supports a link length of 26 meters on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300-meter link lengths are possible. Using 4700 MHz*km MMF (OM4), up to 400 meter link lengths are possible. The Cisco-SFP-10G-SR-S is a transceiver module used for short time data transformation over a multimode fiber network system. Cisco transceiver supports 300m wavelength over OM4 MMF through an LC duplex connector. Cisco – SFP+ transceiver module – 10GbE contains a small form factor plugin interface for seamless installation. 10Gbase-SR SFP module is generally used for connecting server network switches and storage devices. Cisco SFP-10G-SR is used to provide ultra-high-speed network connections in large firms and campuses.
Cisco-SFP-10G-SR-S
| Product Number | SFP-10G-SR-S | |
| Description | Cisco 10GBASE-SR SFP+ Module for MMF | |
| Type | 10GBASE-SR 850nm MMF | |
| Transmit Power (dBm) | Maximum | Minimum |
| -1.2 | -7.3 | |
| Receive Power (dBm) | Maximum | Minimum |
| -1.0 | -9.9 | |
| Transmit and Receive Wavelength (nm) | 840 to 860 | |
| Bail Latch Color | Beige | |
| Power Consumption (W) | 1 | |
| Operating Temperature Range | COM | |
Features
- Cisco transceiver supports 10 gigabit ethernet data rate speed.
- SFP-10G-SR 10Gbase-SR SFP module transmits data over a distance of 300 meters.
- The SFP module collaborates with MMF(Multimode fiber optic cables).
- Cisco original new transceiver uses 40G port bandwidth.
- SFP-10GB-SR Optical module provides uninterrupted connectivity for your network.
Specifications of Cisco-SFP-10G-SR-S
| Product Code | SFP-10G-SR S= |
| Type | Transceiver |
| SFP-10G-SR S price | $36.00 |
| Form Factor | SFP+ |
| DDM/DOM | Supported |
| Max Data Rate Speed | 10.3125Gbps |
| Core Size | 50/125µm |
| Wavelength | 850nm |
| Hot Swappable | Yes |
| Operating Temperature | 0-70 degrees Celsius (32-158 deg Fahrenheit) |
| Connector | Dual-LC |
| Cable Type | Multimode Fiber (MMF) |
| Power Consumption | 1W |
| Storage Temperature | -40-85 degrees Celsius (-40-185 deg Fahrenheit) |
What is An SFP Module?
SFP stands for small form factor pluggable transceiver. It is a core technology in many networks. Its function is to communicate with different networking devices like switches.
Is SFP Faster Than Ethernet?
SFP is an interface that links devices to a network and the speed of the network relies on ethernet, such as 1 GbE or 10 GbE and cable also a 10 Gbit SFP transceiver.
Can I Use Multimode Fiber With Single Mode SFP?
No, it’s not possible to use multi mode fiber with a single mode. However, if you insist to use multi mode with the single mode, it will result in poor performance, signal loss.
