CS-MIC-TABLE-E=
CS-MIC-TABLE-E=
Original price was: $350.00.$290.00Current price is: $290.00.

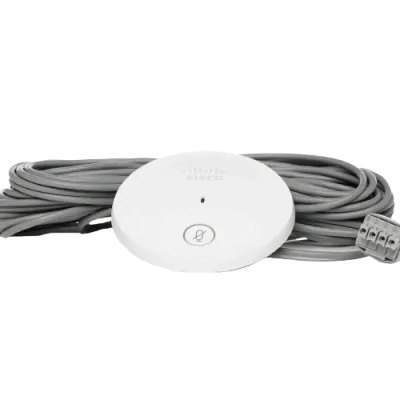

Cisco CS-MIC-TABLE-E= TelePresence table microphone provides a range of audio coverage solutions for both integrated video systems and custom video deployments – either on the table or discreetly through the ceiling. The microphones are optimized for voice and designed for use in collaboration meeting rooms with great audio quality.
CS-MIC-TABLE-E= Description
|
Cisco conferencing microphones offer a vast range of audio reporting solution for integrated video systems, room kits and custom video deployments – either on the table or tastefully through the ceiling. These Cisco Microphones Data Sheet – intelligent microphones are optimized for sound reproduction voice pickup and useful noise cancellation, and planned for use in small-to-large meeting rooms and focused spaces to enable a distraction-free audio experience and wide-ranging collaboration for remote meeting contributor.
Cisco Microphones Data Sheet Features and Benefits
The Cisco® microphone portfolio is complete up of the Table Microphone, Ceiling Microphone, and the Table Microphone Pro.

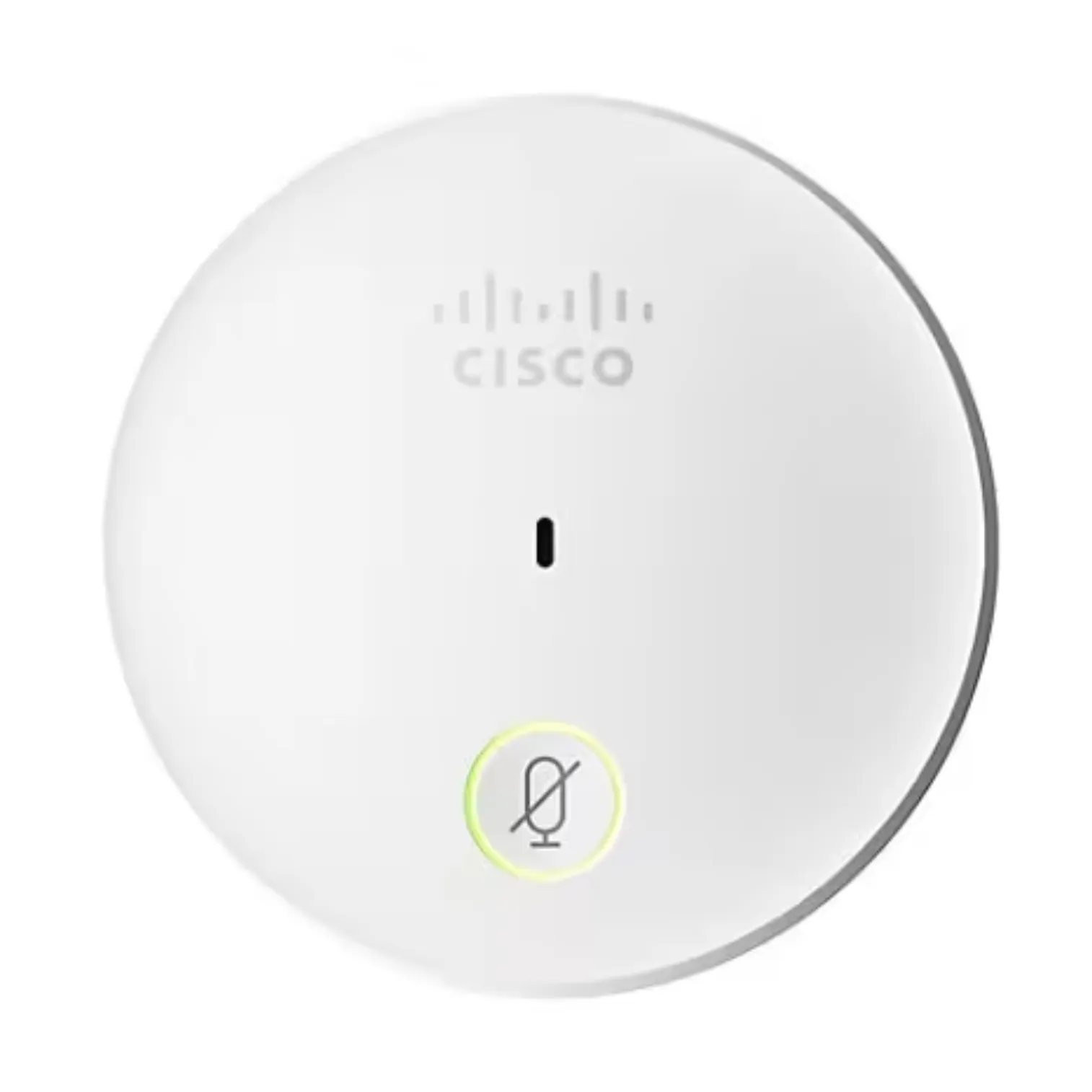

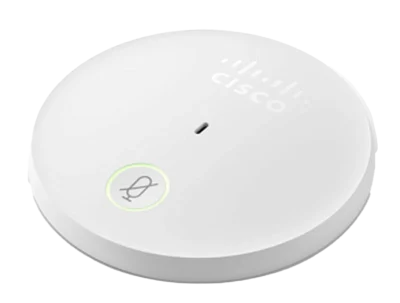

- The Cisco Table Microphone is an analogue, Omni-directional microphone item for Cisco video conferencing systems. It is perfect for omnidirectional reporting for small-to-large rooms with fixed tables. Cisco Table Microphone is available in two versions, either with plug or a mini jack. It is also planned to keep tables tidy and clean, as it can be recessed into the simply rest on a magnetic table plate.
- The Ceiling Microphone is a premium quality, reliable directional microphone planned to cover larger meeting spaces, such as demo rooms, auditoriums and training rooms with easy ceiling mounting, while freeing up table space.
- New Cisco Table Microphone Pro is a high-quality digital conferencing microphone planned to offer room kits and Cisco video collaboration systems with capable speech capture and good audio processing. The Table Microphone Pro recognizes which side of the table the speaker is on and uses adaptive audio technology to block out distract sounds from the background with your Cisco video devices. It takes sleek design, versatile mounting and simplified cable management options for enhanced flexibility and lower use costs.
Cisco Microphones Data Sheet Product Specifications
| Product Name |
Table Microphone |
Ceiling Microphone |
Table Microphone Pro |
| Description | Balanced omnidirectional table microphone, boundary layer type | Balanced directional microphone (180-degree pickup pattern), boundary layer type | Digital, directional microphone (360-degree cardioid pickup pattern) |
| Product compatibility | ● Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ, Room Kit EQX, Room Kit Pro
● Room 55, Room 55 Dual, Room 70, Room 70 G2 ● SX10, SX20, SX80 ● MX700, MX800 ● Board Pro 55/75 |
● Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ, Room Kit EQX, Room Kit Pro
● Room 55, Room 55 Dual, Room 70, Room 70 G2 ● SX10, SX20, SX80 ● MX200, MX300, MX700, MX800 ● Board Pro 55/75 |
● Room Bar Pro
● Room Kit EQ ● Room Kit EQX ● Room Kit Pro ● Board Pro 55/75 ● Room Panorama ● Room 70 Panorama ● Room 70 Panorama Upgrade |
| Connector | Choose between 4-pin mini jack and 4-pin Euroblock versions | Delivered with both 4-pin Euroblock and 4-pin mini jack connectors | Ethernet RJ45 |
| Frequency range | 80 Hz to 20 kHz, +/-6 dB | 80 Hz to 20 kHz, +/- 6 dB | 100 Hz to 16 kHz, +/- 6 dB (on axis) |
| Free field sensitivity | -34 dB +/- 3 dB rel 1V/Pa, 1kHz | -33 dB +/- 3 dB rel 1V/Pa, 1kHz | -22 dBFS +/- 3 dB rel 1V/Pa, 1kHz |
| Signal-to-noise ratio | Minimum 70 dB | Minimum 72 dB | Minimum 70 dB |
| Mute functionality | LED showing mute status Mute/unmute button | LED showing mute status | LED showing mute status Mute/unmute button |
| Physical dimensions (L x D x H) |
Round shape
6.39 cm (diameter) x 1.09 cm 2.52 in (diameter) x 0.43 in |
75 x 55 x 27 cm
29.5 x 21.6 x 9.8 in |
Diameter: 10 cm (3,94 inches)
Height: 3 cm (1,18 inch) 10 x 10 x 3 cm 3.94 x 3.94 x 1.18 in Attached cable length: 11 m (36 feet) |
| Weight | 0.28 lb (0.126 kg) | 4.08 lb / 1.85 kg | 0.29 lb / 0.3 kg |
| Phantom power | 9V/52V | 12V / 48V | Power over Ethernet |
Product sustainability
Cisco environmental sustainability information
| Sustainability topic |
Reference |
|
General
|
Information on product-material-content laws and regulations
Information on electronic waste laws and regulations, including our products, batteries and packaging
Information on product takeback and resuse program
Sustainability Inquiries |
Materials
WEEE Compliance
Cisco Takeback and Reuse Program
Contact: [email protected] |
|
Material |
Product packaging weight and materials |
Contact: [email protected]
|
CS-MIC-TABLE-E Ordering information
| Product Name | Part Number |
| Cisco Table Microphone with 4-pin mini jack connector,7.5 meters cable | CS-MIC-TABLE-J= |
| Cisco Table Microphone with 4-pin Euroblock connector,9 meters cable | CS-MIC-TABLE-E= |
| Cisco Table Microphone extension cable for the 4-pin mini jack cables, 9 meters | CAB-MIC-EXT-J= |
| Cisco Table Microphone extension cable for the 4-pin mini Euroblock cables, 9 meters | CAB-MIC-EXT-E= |
| Cisco Ceiling Microphone(clips for grid ceiling mounting not included) | CTS-MIC-CLNG-G2 |
| Cisco Ceiling Microphone optional cable(10 meter not plenum rated) | CAB-ETHRSHLD-10M |
| Cisco Table Microphone Pro | CS-MIC-ARRAY-T |
Cisco Microphone Spare Parts Ordering Information (CS-MIC-TABLE-E)
| Product Name |
Part Number |
Compliance Model Number |
| Cisco Table Microphone spare cable for the 4-pin mini jack connector, 7.5mm cable | CAB-MIC-TABLE-J= | – |
| Cisco Table Microphone spare cable for the 4-pin Euroblock connector, 9m cable | CAB-MIC-TABLE-E= | – |
| Cisco Table Microphone spare table-top metal plate (3 units) | CS-MIC-TABLE-PLA= | – |
| Cisco Ceiling Microphone plates | CTS-MIC-CLNG-PLT= | – |
| Cisco Ceiling Microphone element | CTS-MIC-CLNG-ELM= | – |
| Cisco Ceiling Microphone dongles (RJ-45 mini jack and RJ4-5 Euroblock) | CTS-MIC-CLNG-DNG= | – |
| Cisco Ceiling Microphone wiring kit (2 meters/6.5 feet) | CTS-MIC-CLNG-WRK= | – |
| Cisco Ceiling Microphone cable (10 meters/32.8 feet) | CAB-ETHRSHLD-10M= | – |
| Cisco Table Microphone Pro | CS-MIC-ARRAY-T= | TTC5-17 |
