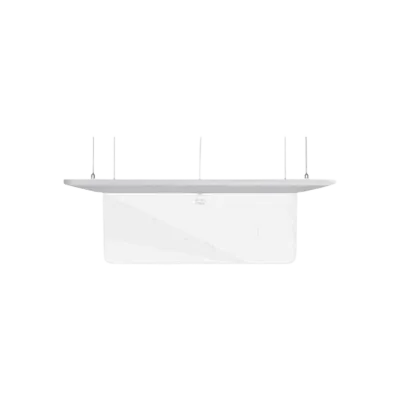

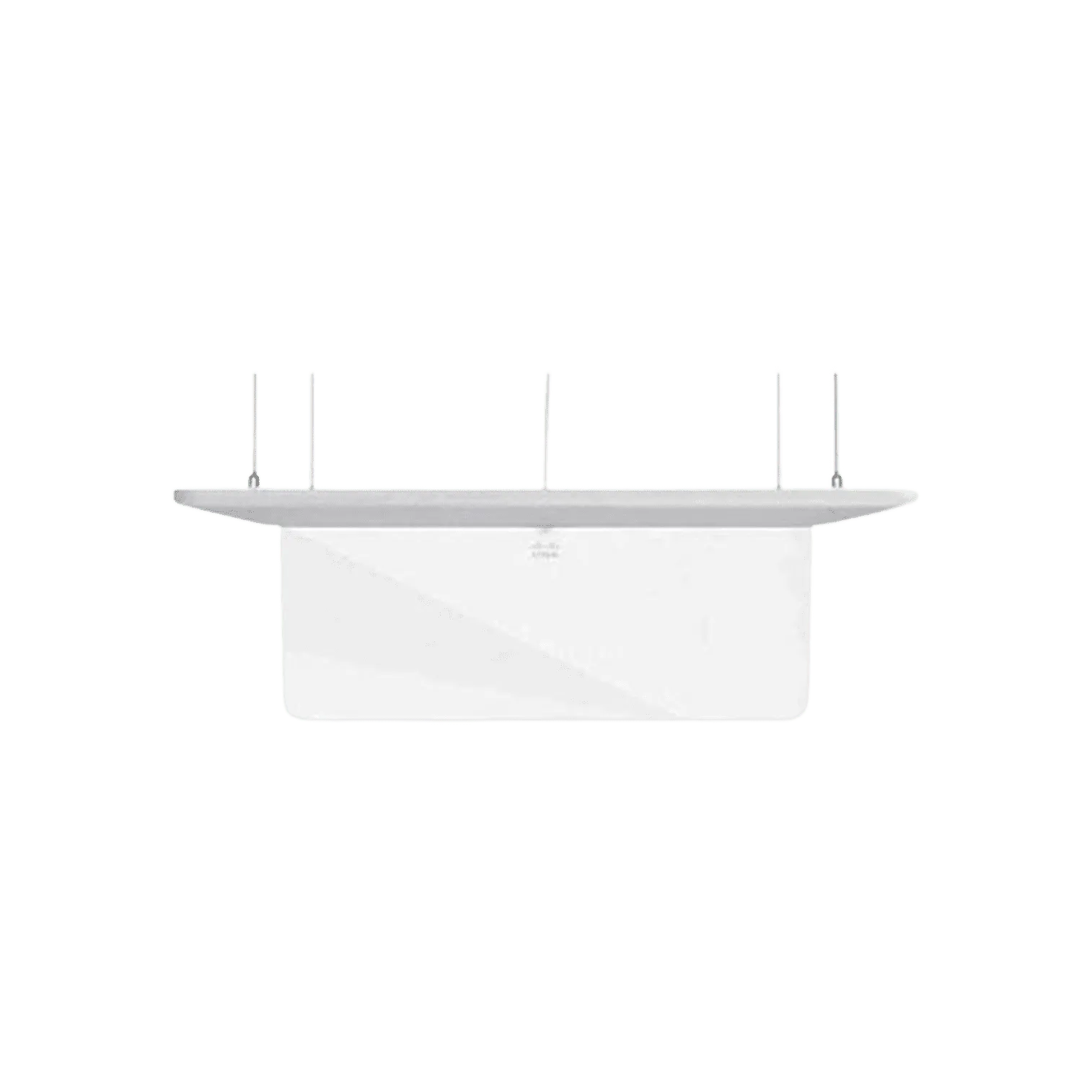

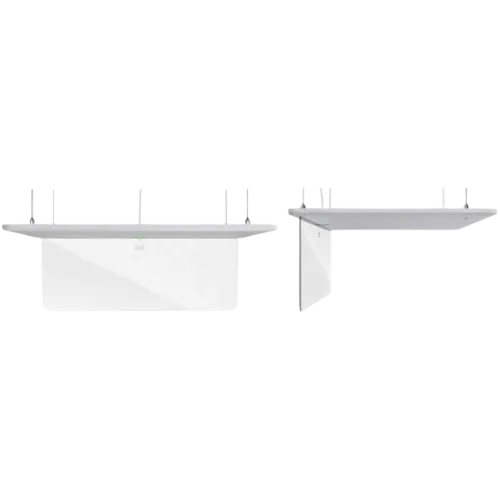

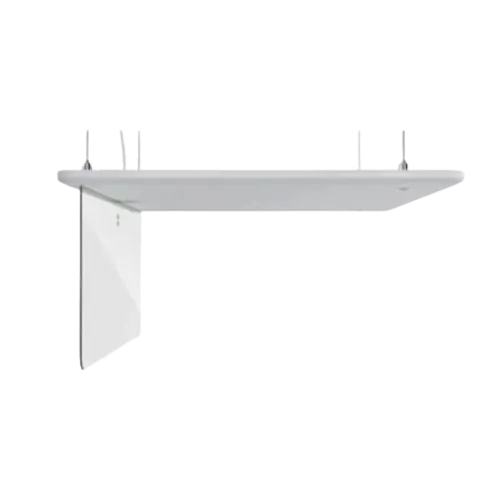

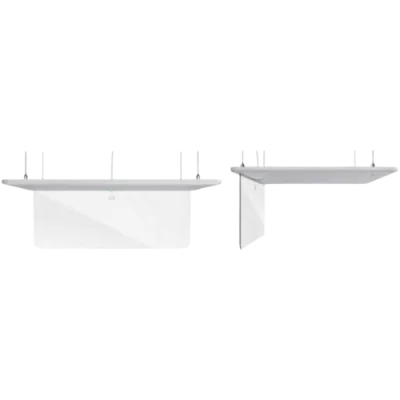

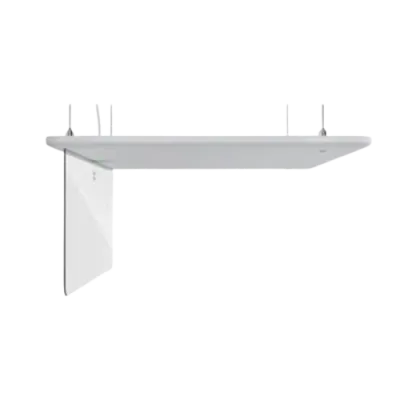

CTS-MIC-CLNG-G2=

Sale!

CTS-MIC-CLNG-G2=

Original price was: $1,000.00.Current price is: $710.00.

Cisco CTS-MIC-CLING-G2= is compatible with TelePresence MX and SX video Conferencing System. Cisco TelePresence Microphones provide a range of audio coverage solutions for both integrated video systems and custom video deployments – either on the table or discreetly through the ceiling. The microphones are optimized for voice and designed for use in small to large collaboration meeting rooms with state-of-the-art audio quality.

CTS-MIC-CLNG-G2=

CTS-MIC-CLNG-G2=

Original price was: $1,000.00.Current price is: $710.00.

Cisco CTS-MIC-CLING-G2= Product Description

  • Cisco Telepresence Ceiling Microphone Generation 2 – microphone
  •  Product Type Microphone
  •  Recommended UseConference
  •  Designed ForTelepresence Table Microphone 60

Cisco CTS MIC-CLING G2 Ceiling Microphone Quick Specs

  • 80 directional coverage for 14 feet
  • Wide Frequency range of 80 Hz to 20 KHz
  • Compatible with Cisco MX and SX systems.
  • Full Mounting equipment included.

Cisco TelePresence Ceiling Microphone Package

  • Microphone
  • Top Plate
  • Verticle Plate
  • 2x Plugs
  • 4x 2m Mounting Wires
  • 10m Ethernet cable
  • Ceiling Gormmet
  • Euroblock Adapter
  • Gloves

Cisco conferencing microphones offer a vast range of audio reporting solution for integrated video systems, room kits and custom video deployments – either on the table or tastefully through the ceiling. These Cisco Microphones Data Sheet – intelligent microphones are optimized for sound reproduction voice pickup and useful noise cancellation, and planned for use in small-to-large meeting rooms and focused spaces to enable a distraction-free audio experience and wide-ranging collaboration for remote meeting contributor.

Cisco Table Microphone
Cisco Table Microphone



Cisco Ceiling Microphone
Cisco Ceiling Microphone



Cisco Table Microphone Pro
Cisco Table Microphone Pro

Cisco Microphones Data Sheet Features and Benefits

The Cisco® microphone portfolio is complete up of the Table Microphone, Ceiling Microphone, and the Table Microphone Pro.

  • The Cisco Table Microphone is an analogue, Omni-directional microphone item for Cisco video conferencing systems. It is perfect for omnidirectional reporting for small-to-large rooms with fixed tables. Cisco Table Microphone is available in two versions, either with plug or a mini jack. It is also planned to keep tables tidy and clean, as it can be recessed into the simply rest on a magnetic table plate.
  • The Ceiling Microphone is a premium quality, reliable directional microphone planned to cover larger meeting spaces, such as demo rooms, auditoriums and training rooms with easy ceiling mounting, while freeing up table space.
  • New Cisco Table Microphone Pro is a high-quality digital conferencing microphone planned to offer room kits and Cisco video collaboration systems with capable speech capture and good audio processing. The Table Microphone Pro recognizes which side of the table the speaker is on and uses adaptive audio technology to block out distract sounds from the background with your Cisco video devices. It takes sleek design, versatile mounting and simplified cable management options for enhanced flexibility and lower use costs.

Cisco Microphones Data Sheet Product Specifications



Product Name

Table Microphone

Ceiling Microphone

Table Microphone Pro

Description Balanced omnidirectional table microphone, boundary layer type Balanced directional microphone (180-degree pickup pattern), boundary layer type Digital, directional microphone (360-degree cardioid pickup pattern)
Product compatibility ●  Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ, Room Kit EQX, Room Kit Pro

●  Room 55, Room 55 Dual, Room 70, Room 70 G2

●  SX10, SX20, SX80

●  MX700, MX800

●  Board Pro 55/75

●  Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ, Room Kit EQX, Room Kit Pro

●  Room 55, Room 55 Dual, Room 70, Room 70 G2

●  SX10, SX20, SX80

●  MX200, MX300, MX700, MX800

●  Board Pro 55/75

●  Room Bar Pro

●  Room Kit EQ

●  Room Kit EQX

●  Room Kit Pro

●  Board Pro 55/75

●  Room Panorama

●  Room 70 Panorama

●  Room 70 Panorama Upgrade

Connector Choose between 4-pin mini jack and 4-pin Euroblock versions Delivered with both 4-pin Euroblock and 4-pin mini jack connectors Ethernet RJ45
Frequency range 80 Hz to 20 kHz, +/-6 dB 80 Hz to 20 kHz, +/- 6 dB 100 Hz to 16 kHz, +/- 6 dB (on axis)
Free field sensitivity -34 dB +/- 3 dB rel 1V/Pa, 1kHz -33 dB +/- 3 dB rel 1V/Pa, 1kHz -22 dBFS +/- 3 dB rel 1V/Pa, 1kHz
Signal-to-noise ratio Minimum 70 dB Minimum 72 dB Minimum 70 dB
Mute functionality LED showing mute status Mute/unmute button LED showing mute status LED showing mute status Mute/unmute button
Physical dimensions
(L x D x H)
Round shape

6.39 cm (diameter) x 1.09 cm

2.52 in (diameter) x 0.43 in

75 x 55 x 27 cm

29.5 x 21.6 x 9.8 in

Diameter: 10 cm (3,94 inches)

Height: 3 cm (1,18 inch)

10 x 10 x 3 cm

3.94 x 3.94 x 1.18 in

Attached cable length: 11 m (36 feet)

Weight 0.28 lb (0.126 kg) 4.08 lb / 1.85 kg 0.29 lb / 0.3 kg
Phantom power 9V/52V 12V / 48V Power over Ethernet



Product sustainability

Cisco environmental sustainability information

Sustainability topic

Reference



General











Information on product-material-content laws and regulations







Information on electronic waste laws and regulations, including our products, batteries and packaging









Information on product takeback and resuse program





Sustainability Inquiries



Materials









WEEE Compliance











Cisco Takeback and Reuse Program







Contact: info@topparagonresource.com



Material



Product packaging weight and materials



Contact: info@topparagonresource.com



Ordering information

Product Name Part Number
Cisco Table Microphone with 4-pin mini jack connector,7.5 meters cable CS-MIC-TABLE-J=
Cisco Table Microphone with 4-pin Euroblock connector,9 meters cable CS-MIC-TABLE-E=
Cisco Table Microphone extension cable for the 4-pin mini jack cables, 9 meters CAB-MIC-EXT-J=
Cisco Table Microphone extension cable for the 4-pin mini Euroblock cables, 9 meters CAB-MIC-EXT-E=
Cisco Ceiling Microphone(clips for grid ceiling mounting not included) CTS-MIC-CLNG-G2
Cisco Ceiling Microphone optional cable(10 meter not plenum rated) CAB-ETHRSHLD-10M
Cisco Table Microphone Pro CS-MIC-ARRAY-T



Cisco Microphone Spare Parts Ordering Information

Product Name

Part Number

Compliance Model Number

Cisco Table Microphone spare cable for the 4-pin mini jack connector, 7.5mm cable CAB-MIC-TABLE-J=
Cisco Table Microphone spare cable for the 4-pin Euroblock connector, 9m cable CAB-MIC-TABLE-E=
Cisco Table Microphone spare table-top metal plate (3 units) CS-MIC-TABLE-PLA=
Cisco Ceiling Microphone plates CTS-MIC-CLNG-PLT=
Cisco Ceiling Microphone element CTS-MIC-CLNG-ELM=
Cisco Ceiling Microphone dongles (RJ-45 mini jack and RJ4-5 Euroblock) CTS-MIC-CLNG-DNG=
Cisco Ceiling Microphone wiring kit (2 meters/6.5 feet) CTS-MIC-CLNG-WRK=
Cisco Ceiling Microphone cable (10 meters/32.8 feet) CAB-ETHRSHLD-10M=
Cisco Table Microphone Pro CS-MIC-ARRAY-T= TTC5-17
