CTS-SX10-K9

Sale!

CTS-SX10-K9

$1,180.00

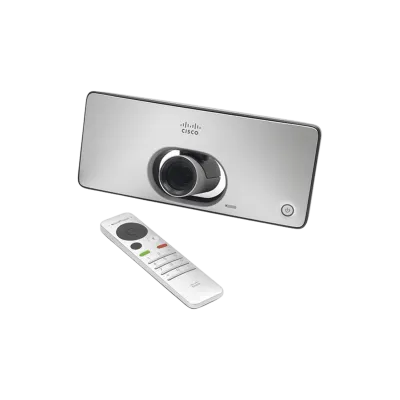

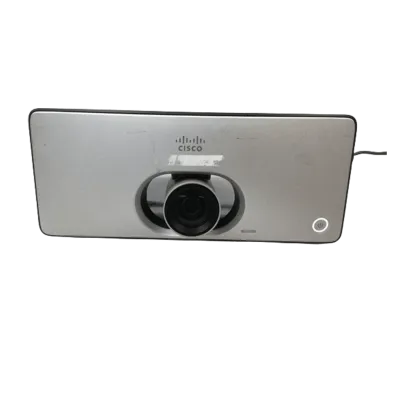

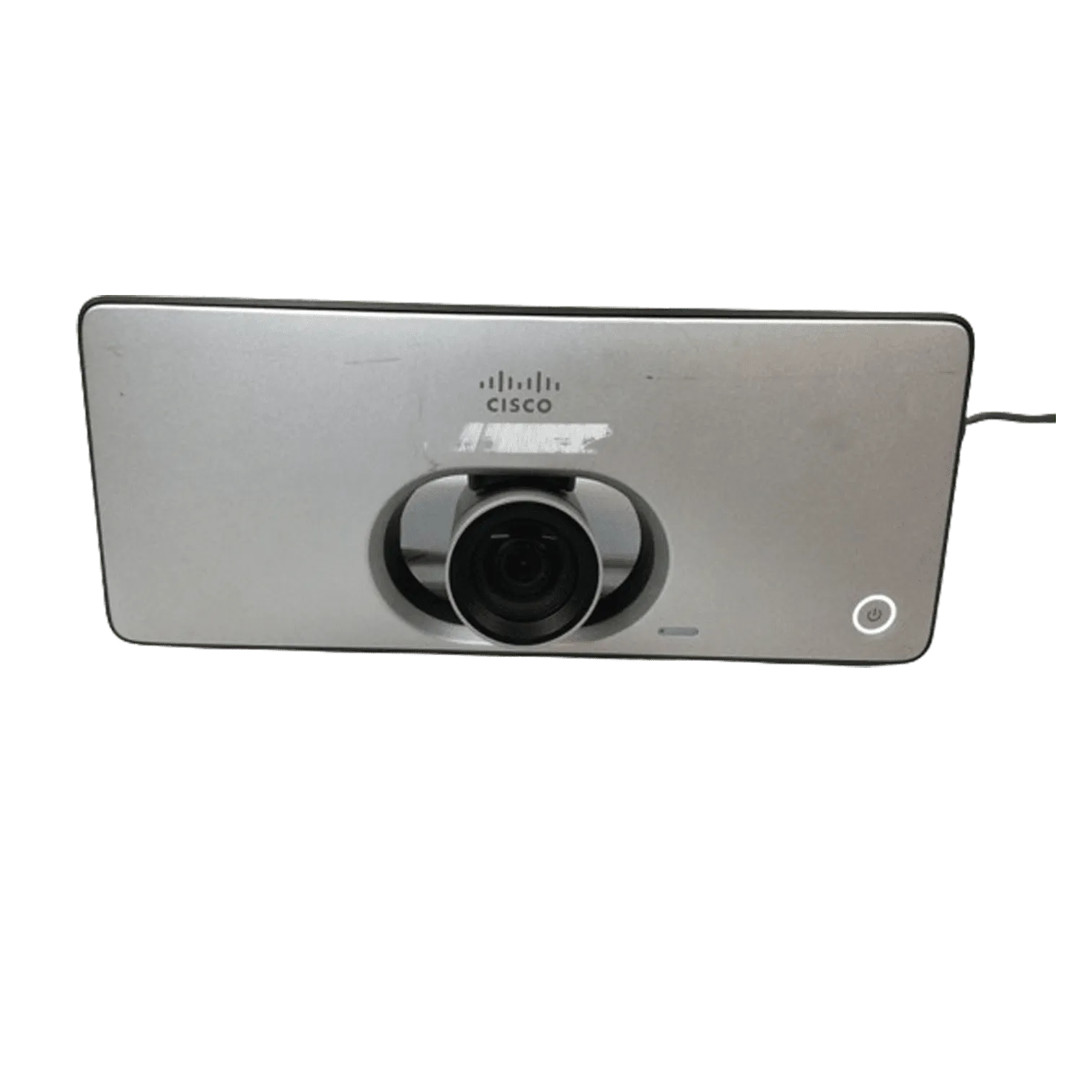

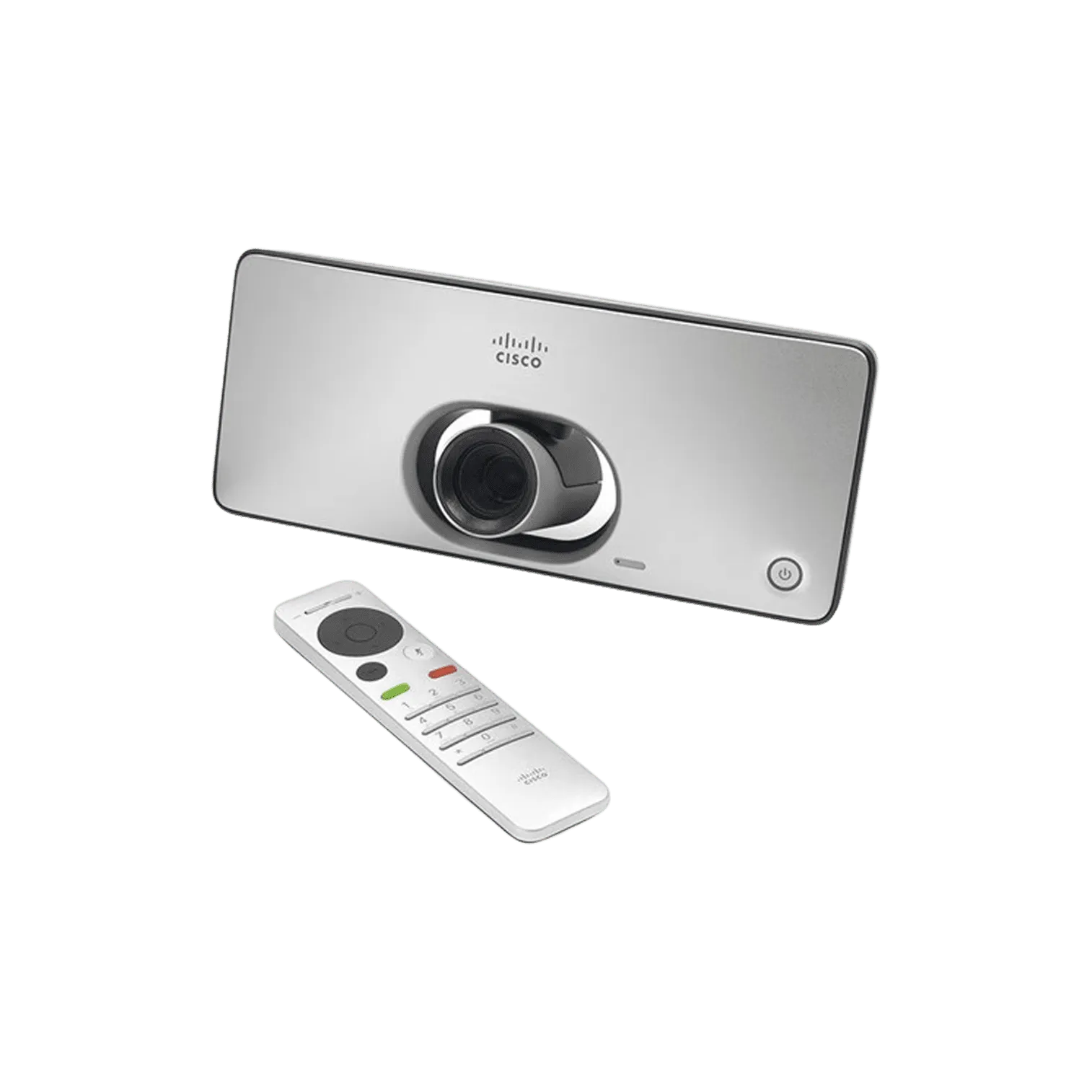

CTS-SX10-K9 TelePresence SX10 Quick Set 1920 x 1080 Video x HDMI Out 1 x Network (RJ-45) Ethernet Video Conference Equipment | Made by Cisco

General Information about this Cisco CTS-SX10-K9

  • Manufacturer: Cisco
  • Model Number or SKU# CTS-SX10-K9
  • Product Line TelePresence
  • Product Series SX
  • Product Model SX10
  • Product Name TelePresence SX10 Quick Set
  • Product Type Video Conference Equipment

Technical Information for TelePresence SX10 Quick Set

  • ITU-T Recommendation H.460.18/19
  • ITU-T Recommendation SIP
  • ITU-T Recommendation H.323
  • Video Bridging Point-to-Point
  • TelePresence SX10 Quick Set

Video

  • Graphics Modes (Live) WXGA
  • Maximum Video Resolution (Live) 1920 x 1080
  • Maximum Frame Rate 60 fps
  • Video Encoding H.263+
  • Video Encoding H.264
  • Video Encoding H.263

Audio

  • Microphone Form Factor Internal
  • Audio Encoding G.729
  • Audio Encoding G.729ab
  • Audio Encoding G.722.1
  • Audio Encoding G.722
  • Audio Encoding G.711

Network and Communication of Video Conference Equipment

  • Network Technology 10/100Base-TX
  • Ethernet Technology Ethernet

Interfaces/Ports

  • HDMI In Yes
  • HDMI Out Yes
  • Audio Line In Yes
  • Network (RJ-45) Yes
  • USB Yes
  • Number of Network (RJ-45) Ports 1
  • Number of HDMI Inputs 1
  • Number of Audio Line In 1
  • Number of Audio Line Out 1

Miscellaneous

  • Package Contents:
  • SX10 Codec With Integrated HD Camera
  • Wall Mount Kit
  • Integrated Microphone
  • TRC6 Remote Control

Dimension and Weight

  • Height: 4.6 Inch
  • Width: 10.8 Inch
  • Depth: 3.6 Inch
  • Weight: 2 LBS

Management & Protocols

  • Data Link Protocol: Ethernet, Fast Ethernet
  • Network / Transport Protocol: TCP/IP, NTP, DHCP, DNS

Power

  • Power Device: Power supply – internal
  • Voltage Required: AC 120/230 V (50/60 Hz)
  • Power Consumption Operational: 12 Watt

Features

  • Flow control, power over Ethernet (PoE), LDAP support, VLAN support, DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS)

Compliant Standards

  • EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-07, Directive 2004/108/EC, Directive 2006/95/EC, IEC60950-1

Environmental Parameters

  • Min Operating Temperature: 32 °F
  • Max Operating Temperature: 104 °F
  • Humidity Range Operating: 10 – 90%
