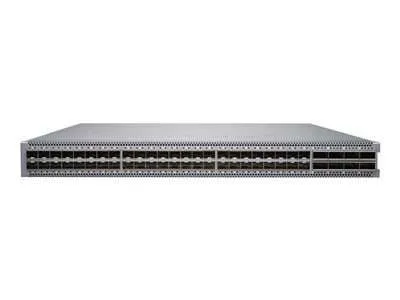

EX4650-48Y

Sale!

EX4650-48Y

Original price was: $17,450.00.Current price is: $15,640.00.

The Juniper EX4650 Ethernet Switch delivers 2 Tb/s of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches.

EX4650-48Y

EX4650-48Y

Original price was: $17,450.00.Current price is: $15,640.00.

  •  Product DescriptionJuniper Networks EX Series EX4650-48Y – switch – 48 ports – managed – rack-mountable
  •  Device TypeSwitch – 48 ports – L3 – managed – stackable
  •  Enclosure TypeFront to back airflow rack-mountable 1U
  •  Subtype25 Gigabit Ethernet
  •  Ports48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28
  •  PerformanceSwitching capacity: 2 Tbps ¦ Switching capacity: 1.49 Bpps
  •  CapacityVirtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 509 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ Link aggregation groups: 80 ¦ Maximum member ports per LAG: 64 ¦ Firewall ingress filters: 1500 ¦ Firewall egress filters: 512 ¦ IPv4 prefixes (Unicast): 360000 ¦ IPv4 routes (Unicast): 208000 ¦ IPv4 routes (Multicast): 104000 ¦ ECMP paths: 64 ¦ IPv6 prefixes (Unicast): 170000 ¦ IPv6 routes (Unicast): 104000 ¦ IPv6 routes (Multicast): 52000 ¦ Mirroring destination ports per switch: 4 ¦ Maximum number of mirroring sessions: 4 ¦ Mirroring destination VLANs per switch: 4 ¦ Queues per port: 10
  •  MAC Address Table Size288K entries
  •  Jumbo Frame Support9216 bytes
  •  Routing ProtocolOSPF, RIP, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, RSVP
  •  Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, OVSDB
  •  FeaturesARP support, IGMP snooping, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), VLAN Spanning Tree Protocol (VSTP), built-in DIP switch, static routing, Class of Service (CoS), sFlow v5, Multicast Source Discovery Protocol (MSDP), multihoming, cut-through, IGMP filtering, Uplink Failure Detection (UFD), Storm Control, Weighted Tail Drop (WTD), Priority-Based Flow Control (PFC), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), TCP/UDP port setting, Python runtime, Private VLAN, Zero-touch provisioning (ZTP), 4+1 redundant fans, MAC based VLAN, Routed VLAN Interface (RVI), port-based VLAN, Junos XML management protocol, VLAN trunking, Multichassis link aggregation (MC-LAG), Link Aggregation Group (LAG), remarking of bridged packets, static label-switched paths (LSPs), RSVP-based signaling of LSPs, LDP-based signaling of LSPs, LDP tunneling (LDP over RSVP), MPLS LSR support, image rollback, beacon LED, traffic mirroring
  •  Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, Shaped Deficit Weighted Round-Robin (SDWRR)
  •  PowerAC 120/230 V
  •  Power RedundancyOptional
  •  Dimensions (WxDxH)17.4 in x 20.5 in x 1.7 in
  •  Weight23.7 lbs
