HPE Aruba J9726A
HPE Aruba J9726A
Original price was: $500.00.$361.99Current price is: $361.99.
The Aruba J9726A is a member of the 2920 Series of network switching products and connected accessories. The 2920 Series is a Scalable Basic Layer 3 switch series that deliver modular stack, static & RIP routing, IPv6, ACLs, and sFlow for a better mobile-first campus network experience.
Aruba J9726A 24 x 10/100/1000 PoE+ ports, 4 RJ-45 dual-personality 10/100/1000 PoE+ ports and 2 module slots for expansion. J9726A HPE 2920-48G-PoE+ Switch: Top Paragon Resource provides this Switch for sale in the USA and Malaysia.
This HPE J9726A 2920-48G-PoE+ Switch we market is tech tested and set to defaults. We can immediately this HPE J9726A Switch to your location.
| Product Code | J9726A |
| Type | Aruba 2920 48G POE+ Switch |
| Ports | 20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) · 2 module slots · 1 stacking module slot · 1 dual-personality (RJ-45 or USB micro-B) · 1 USB 1.1 · 1 RJ-45 out-of-band management port |
| Throughput | 95.2 million pps |
| Switching capacity | 128 Gb/s |
| Dimensions | 4.45 x 44.25 x 33.6 cm (1.75 x 17.42 x 13.23 in) |

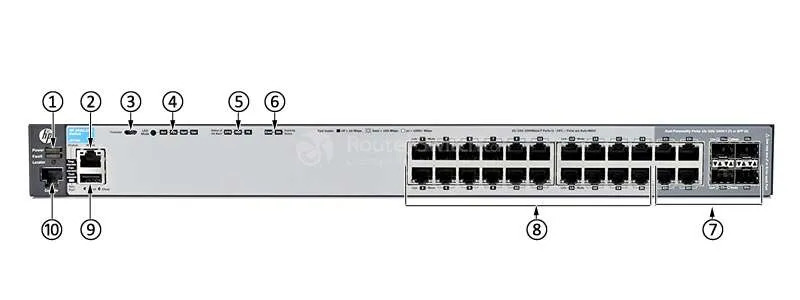

HPE Aruba J9726A -Front

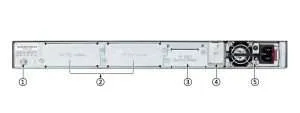

HPE Aruba J9726A -Back
| Product Code | J9726A | J9727A | J9728A | J9729A | J9836A |
| Type | Aruba 2920 24G Switch | Aruba 2920 24G POE+ Switch | Aruba 2920 48G Switch | Aruba 2920 48G POE+ Switch | Aruba 2920-48G-POE+ 740W Switch |
| Ports | · 20 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) · 2 module slots · 1 stacking module slot · 1 dual-personality (RJ-45 or USB micro-B) · 1 USB 1.1 · 1 RJ-45 out-of-band management port |
· 20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) · 2 module slots · 1 stacking module slot · 1 dual-personality (RJ-45 or USB micro-B) · 1 USB 1.1 · 1 RJ-45 out-of-band management port |
· 44 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) · 2 module slots · 1 stacking module slot · 1 dual-personality (RJ-45 or USB micro-B) · 1 USB 1.1 · 1 RJ-45 out-of-band management port |
· 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) · 2 module slots · 1 stacking module slot · 1 dual-personality (RJ-45 or USB micro-B) · 1 USB 1.1 · 1 RJ-45 out-of-band management port |
· 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) · 2 module slots · 1 stacking module slot · 1 dual-personality (RJ-45 or USB micro-B) · 1 USB 1.1 · 1 RJ-45 out-of-band management port |
| Throughput | 95.2 million pps | 95.2 million pps | 130.9 million pps | 130.9 million pps | 130.9 million pps |
| Switching capacity | 28 Gb/s | 128 Gb/s | 176 Gb/s | 176 Gb/s | 176 Gb/s |
| PoE Available Power | – | 370 W | – | 370 W | 740 W |
J9726A Specification
J9726A Specifications |
|
| Model | Aruba 2920-24G Switch |
| Ports | 24 RJ-45 autosensing 10/100/1000 ports |
| Switching capacity | 128 Gbps |
| Throughput | up to 95.2 Mpps |
| MAC address table size | 16000 entries |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 198 BTU/hr (208.89 kJ/hr) |
| Maximum power rating | 58 W |
| Surge | IEC 61000-4-5 |
| Management | Web browser, SNMP, CLI |
| Operating relative humidity | 15% to 95%, non condensing |
| Form factor | Rack-mountable |
| Operating temperature | 32°F to 131°F (0°C to 55°C) |
| Warranty | Limited lifetime warranty |
| Dimensions | 17.42 (w) x 13.23 (d) x 1.75 (h) in |
Datasheet
More information on this HPE J9726A.
