Original price was: $1,530.00.Current price is: $1,390.00.

The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed at operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions, it is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces and is Power over Ethernet (PoE) capable with zero IT management.


Original price was: $1,530.00.Current price is: $1,390.00.

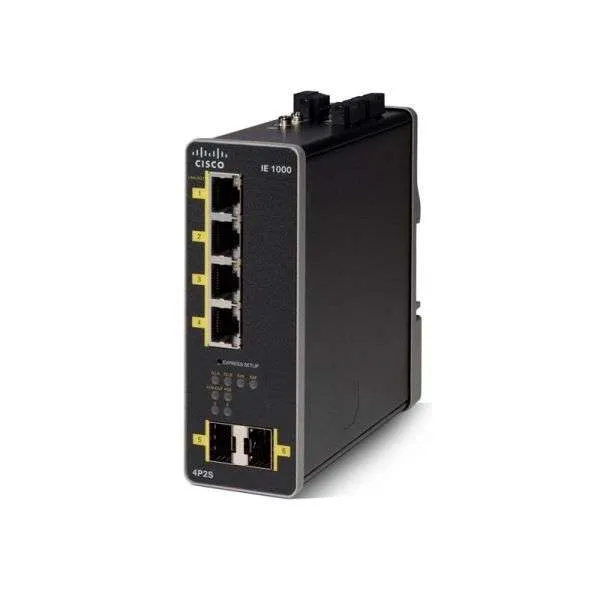

Product Code IE-1000-4P2S-LM
Forwarding Bandwidth • Max:2.8Gbps
Switching Bandwidth • Max:5.6Gbps


• DRAM: 128 MB DDR2 without ECC

• Onboard flash memory: 160 MB

Alarm • Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC
Power consumption Without PoE 8.6W, with PoE 72-140.4W
Connectors and cabling


• 100BASE-FX MMF (2 km)—TBD with engineer input

• 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Dimensions (H x W x D)including DIN rail 5.0”H x 1.8” W x 5.3”D (127mm H x 45.7mmW x 134mm D)

Product Details

Cisco Industrial Ethernet 1000 Series provides these features:

 Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet (GE), copper and fiber uplinks options

 Easy integration:Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management

 PnP (Plug and Play): Automates the process of provisioning the new devices in to the network by applying configurations, installing required image without manual intervention.

 Fast startup time: Starts 30 seconds from cold boot

 Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog

 Security:secure access; port-security; TACACS+ and RADIUS AAA Client: Security protocols to control access into networks;

 IEEE 802.1x security:Provides an authentication mechanism to devices wishing to attach to the network. Single host mode with MAC authentication bypass.

 Minimize data load:VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data

 Lightly-managed:Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware

 Sticky-MAC:Enables the IE1K to retain MAC addresses it dynamically learns and avoid new devices to connect on the port

 BootP server with per-port support: When client sends a BootP request, the server responds with BootP response based on same DHCP pool configuration.

 Gigabit uplink:Two fiber-optic SFP based uplink for up to 50 miles (80 kilometers) links

 Industrial PoE: Up to eight PoE (IEEE and PoE+ (802.3at) supported on selected models

 Redundant voltage feeds, alarm relays support and DIN rail mount

 Industrial environmental compliance and certifications: Ethernet/IP (CIP) Product
