JL685A

Sale!

JL685A

$535.00

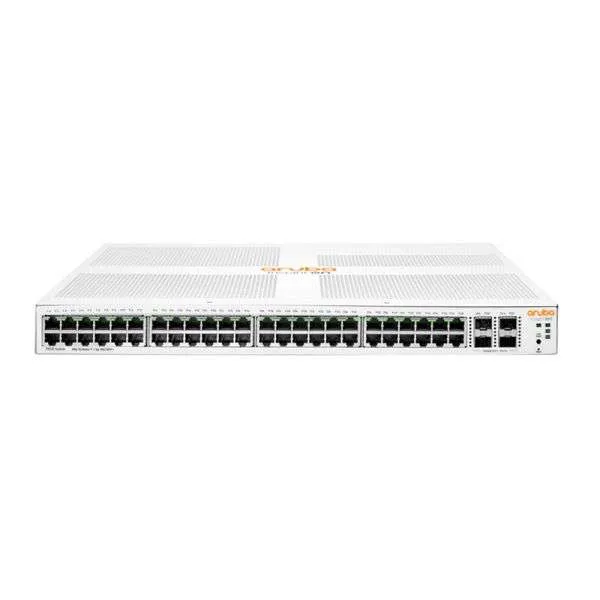

Aruba Instant On 1930 48G 4SFP/SFP+ Switch

JL685A Specification

I/O ports and slots 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);

Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only



4 SFP+ 1/10GbE ports

Dimension 17.42(w) x 11.12(d) x 1.73(h) in (44.25 x 28.24 x 4.39 cm) (1U height)
Processor and memory ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Throughput (Mpps) 130.95 Mpps
Switching capacity 176 Gbps
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative

humidity

15% to 95% @ 104°F (40°C)
Nonoperating/Storage

temperature

-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage

relative humidity

15% to 95% @ 140°F (60°C)
Altitude up to 10,000 ft (3 km)
Idle power 16.8 W
PoE Not Support
Power Supply Internal power supply
