QFX-QSFP-40G-SR4

Sale!

QFX-QSFP-40G-SR4

$140.00

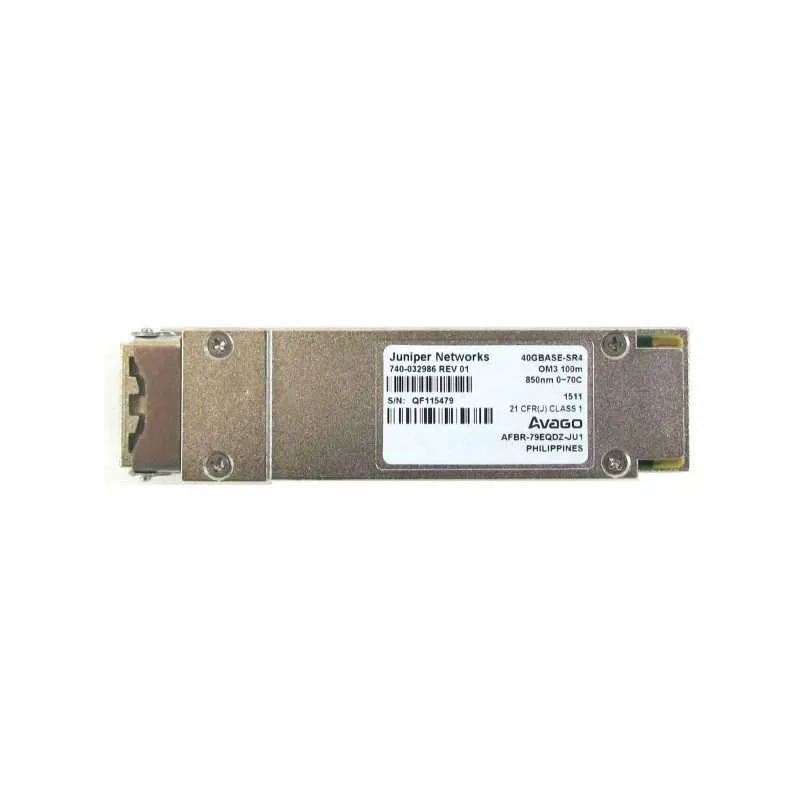

Juniper QSFP+ 40GBase-SR4 40 Gigabit Optics, 850nm for up to 150m transmission on MMF

  • Brand: Juniper
  • Part Number: QFX-QSFP-40G-SR4
  • Condition: Factory New SealedAvailability: In Stock
  • Ships: Typically within 2 Business Days
    Specifications
    • Product Number: QFX-QSFP-40G-SR4
    • Product Name: QSFP+ 40GBase-SR4 40 Gigabit Optics, 850nm for up to 150m transmission on MMF
    • Part Number: 740-067442, 740-032986
    • Speed: 40 Gigabit Ethernet
    • Transceiver Type: QSFP+
    • Product Type: Optical Transceiver
    • Connector: MPO-12
    • Monitoring Available: Yes
    • Digital Optical Monitoring: Yes
    • Standard: 40GBASE-SR4
    • Diagnostic support
      • Laser bias current–supported
      • RX input power–supported
      • Case temperature–supported
      • Power supply voltage–supported
      • Laser output power–not supported
    • Signaling rate, each lane: 40 Gbps
    • Transmitter fibers: 12
    • Transmitter wavelengths (range): 850 nm
    • Receive lane wavelengths (range): 840 nm to 860 nm
    • Transmitter output power, each lane (minimum)–7.6 dBm (per lane)
    • Transmitter output power, each lane (maximum): 2.4 dBm (per lane)
    • Receiver input power, each lane (minimum): -9.5 dBm
    • Receiver input power, each lane (maximum): 2.4 dBm
    • Optical Transmitter 3-dB spectral width (maximum): 0.65 nm
    • Cable type: MMF
    • Distance: 100 m @ OM3, 150 m @ OM4
    • Operating Temperature (range): 0° C to 70° C
    • Storage temperature: –40° C to 85° C
