QFX Series switches secure and automate your data center networks. They build a strong underlay foundation for flexible and high-performance fabrics that improve network reliability and agility, helping to simplify the path to multicloud.

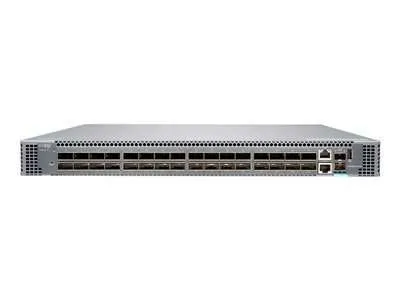

  • Product DescriptionJuniper Networks QFX Series QFX5120-32C – switch – 32 ports – managed – rack-mountable
  •  Device TypeSwitch – 32 ports – L3 – managed – stackable
  •  Enclosure TypeFront to back airflow rack-mountable 1U
  •  Subtype100 Gigabit Ethernet
  •  Ports32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
  •  PerformanceSwitching latency: 550 ns ¦ Switching capacity: 3.2 Tbps ¦ Switching capacity: 2 Bpps
  •  CapacityHost entries: 208000 ¦ VLAN IDs: 4093 ¦ LAG groups: 80 ¦ Active ports in LAG: 64 ¦ IPv4 routes (Unicast, prefixes): 351000 ¦ IPv4 routes (Unicast, host routes): 208000 ¦ ECMP paths: 64 ¦ IPv4 routes (Multicast): 104000 ¦ IPv6 routes (Unicast, prefixes): 168000 ¦ IPv6 routes (Unicast, host routes): 104000 ¦ IPv6 routes (Multicast): 52000 ¦ ARP entries: 64000 ¦ MSTP instances: 64 ¦ VSTP instances: 509 ¦ Mirroring destination ports per switch: 4 ¦ Maximum number of mirroring sessions: 4 ¦ Mirroring destination VLANs per switch: 4 ¦ QoS hardware queues per port: 10
  •  MAC Address Table Size288K entries
  •  Jumbo Frame Support9216 bytes
  •  Routing ProtocolOSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, MSDP, ECMP, MPLS, Bidirectional Forwarding Detection (BFD), RSVP
  •  Remote Management ProtocolSNMP 1, SNMP 2, Telnet, SNMP 3, SSH, SSH-2, CLI, gRPC, OVSDB
  •  FeaturesARP support, MPLS support, VLAN support, IGMP snooping, store and forward, IPv6 support, High Availability, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Quality of Service (QoS), DHCP relay, Data Center Bridging (DCB), Strict Priority Queuing (SPQ), VLAN Spanning Tree Protocol (VSTP), loop prevention, hot swappable fan, Class of Service (CoS), sFlow v5, redundant fans, cut-through, IGMP filtering, Smoothed Deficit Weighted Round Robin (SDWRR), FCoE support, Storm Control, Weighted Tail Drop (WTD), port filtering, Priority-Based Flow Control (PFC), Bridge protocol data unit (BPDU), 32MB packet buffer, Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), Software Defined Networking (SDN), VLAN filtering, MAC address learning, Python runtime, Root Guard, Private VLAN, Zero-touch provisioning (ZTP), MAC based VLAN, Routed VLAN Interface (RVI), port-based VLAN, packet jitter, VLAN trunking, Multichassis link aggregation (MC-LAG), static label-switched paths (LSPs), RSVP-based signaling of LSPs, LDP-based signaling of LSPs, LDP tunneling (LDP over RSVP), MPLS LSR support, image rollback, beacon LED, traffic mirroring, Junos Telemetry Interface (JTI)
  •  Compliant StandardsIEEE 802.11, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
  •  PowerAC 120/230 V (50/60 Hz)
  •  Power RedundancyYes
  •  Dimensions (WxDxH)17.3 in x 20.3 in x 1.7 in
