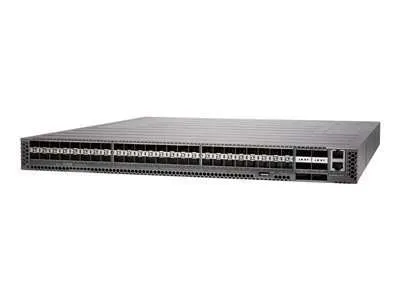

QFX5200-48Y

Sale!

QFX5200-48Y

$9,600.00

QFX5200-48Y delivers a line-rate, low-latency, and high-density platform for building large spine-and-leaf IP-fabric data center networks. 48x25GbE 1 U switch with 6x100GbE uplink ports for connecting to spine, making this an ideal switch for 25GbE access or leaf deployments with 100GbE spine. Additionally, it offers backward compatibility as 25GbE access ports can be configured to 10GbE, and the 100GbE uplink ports can be configured to 40GbE speeds.

Device Type
Switch – 48 ports – managed
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
25 Gigabit Ethernet
Ports
48 x 10/25 Gigabit SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP28
Performance
Throughput: 1.8 Tbps ¦ Forwarding capacity: 2.1 Bpps
Capacity
VLAN IDs: 4096 ¦ Link aggregation groups: 128 ¦ Maximum member ports per LAG: 64 ¦ IPv4 routes (Unicast, prefixes): 128000 ¦ IPv4 routes (Unicast, host routes): 104000 ¦ IPv4 routes (Multicast): 52000 ¦ IPv6 routes (Multicast): 28000 ¦ IPv6 routes (Unicast, prefixes): 98000 ¦ IPv6 routes (Unicast, host routes): 52000 ¦ ARP entries: 32000 ¦ GRE tunnels: 1024 ¦ MPLS labels: 16000 ¦ MSTP instances: 64 ¦ VSTP instances: 253 ¦ QoS hardware queues per port: 10
MAC Address Table Size
136K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, GRE, OSPFv3, PIM-SSM, MLDv2, MLD
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, CLI
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Firewall protection, ARP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, High Availability, Low-latency queuing (LLQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), IPv4 support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Data Center Bridging (DCB), Management Information Base (MIB), VLAN Spanning Tree Protocol (VSTP), loop prevention, redundant hot swappable fans, Class of Service (CoS), sFlow v5, IGMP proxy, Multicast Source Discovery Protocol (MSDP), Generic Routing Encapsulation (GRE), Smoothed Deficit Weighted Round Robin (SDWRR), FCoE support, Uplink Failure Detection (UFD), Storm Control, VLAN Trunking Protocol (VTP), Label Distribution Protocol (LDP), Link Aggregation, IGMP querier, Root Guard, 22MB packet buffer, Zero-touch provisioning (ZTP), Denial of Service (DoS) protection, Switched Port Analyzer (SPAN), Encapsulated Remote SPAN (ERSPAN), Routed VLAN Interface (RVI), port-based VLAN, BPDU Guard, Junos XML management protocol
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.1Qbg
Processor
1 x Intel: 2.3 GHz
