S5735-S24T4XE-V2
S5735-S24T4XE-V2
Original price was: $1,000.00.$830.00Current price is: $830.00.

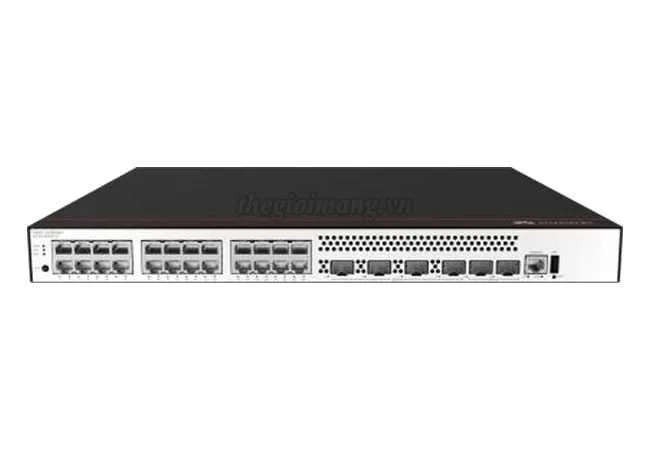

CloudEngine S5735-S24T4XE-V2 : 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports, without power module
| Model | CloudEngine S5735-S24T4XE-V2 |
| Fixed port | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports,2 stack ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 11.34 kg |
| Power supply type | • 180 W AC • 1200 W DC |
| Rated voltage range | • AC input: 100 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input: -48 V DC to -60 V DC |
| Maximum voltage range | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption | • 52 W (2 *180W AC) • 81 W (2* 1200W DC) |
| Noise | • Under normal temperature (sound power): 47dB (A) • Under high temperature (sound power): 51dB (A) • Under normal temperature (sound pressure): 35dB (A) |
| Long-term operating temperature | • 0-1800 m altitude: 0°C to +50°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (service port) | ±7 kV in common mode |
| Surge protection specification (power port) | • AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
