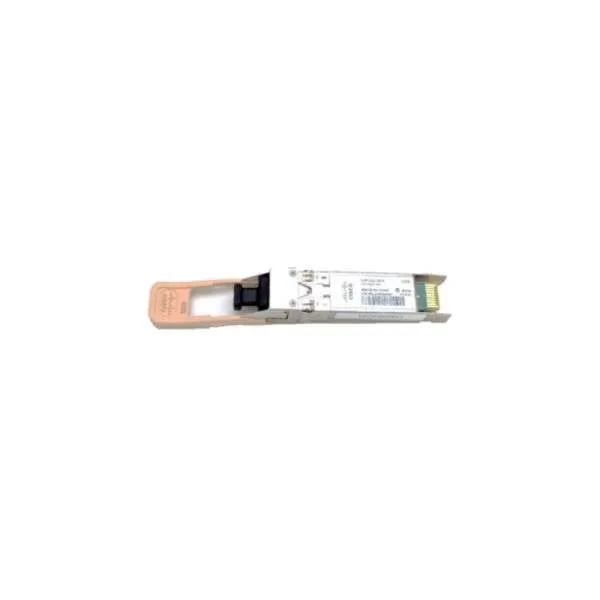

Cisco-SFP-10/25G-CSR-S
Cisco-SFP-10/25G-CSR-S
Original price was: $80.00.$78.00Current price is: $78.00.
The Cisco Cisco-SFP-10/25G-CSR-S 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.
The Cisco SFP-10/25G-CSR-S is a 25GB BASE-CSR transceiver planned for short reach applications using Multipurpose from https://topparagonresource.com technology. Operating at an 850nm wavelength, it offers trustworthy and high-quality connectivity within data center environments.
Cisco-SFP-10/25G-CSR-S
| Product Code | SFP-10/25G-CSR-S= |
| Description | Cisco 10/25GBASE-CSR SFP28 Module for MMF |
| Cable Distance | 300/400m (OM3/OM4) |
| Max Power Consumption (W) | 1.2 |
| Pull Tab Color | Peach |
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (Microns) | 50.0 |
| Modal Bandwidth | 2000 (OM3)
4700 (OM4) |
| Cable Distance | 300m
400m |
SFP-10/25G-CSR-S= Specification
SFP-10/25G-CSR-S Specifications |
||
| Wavelength (nm) | 850 | |
| Cable Type | MMF | |
| Core Size (Microns) | 50.0 | |
| Modal Bandwidth | 500 (OM2) | |
| Cable Distance |
70m (25G) 82m (10G) |
|
| Type | 10G | 25G |
| Maximum: +2.4
Minimum: -7.3 |
Maximum: +2.4
Minimum: -6 |
|
| Transmit Power (dBm)* | Maximum: +2.4
Minimum: -9.9 |
Maximum: +2.4
Minimum: -8.7 |
| Receive Power (dBm)* | Maximum: +2.4
Minimum: -9.9 |
Maximum: +2.4
Minimum: -8.7 |
| Transmit and Receive Wavelength (nm) | 840 to 860 | 840 to 860 |
| Cable Type | MMF | |
| Cable Distance | 300/400m (OM3/OM4)* | |
| Max Power Consumption (W) | 1.2 | |
| Pull Tab /Bail Latch Color | Peach | |
RELATED PRODUCTS
Related products
-
Transceivers

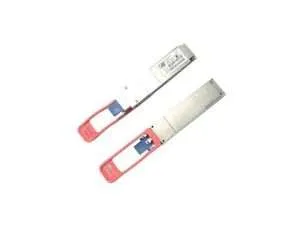

Cisco-QSFP-40G-SR-BD
