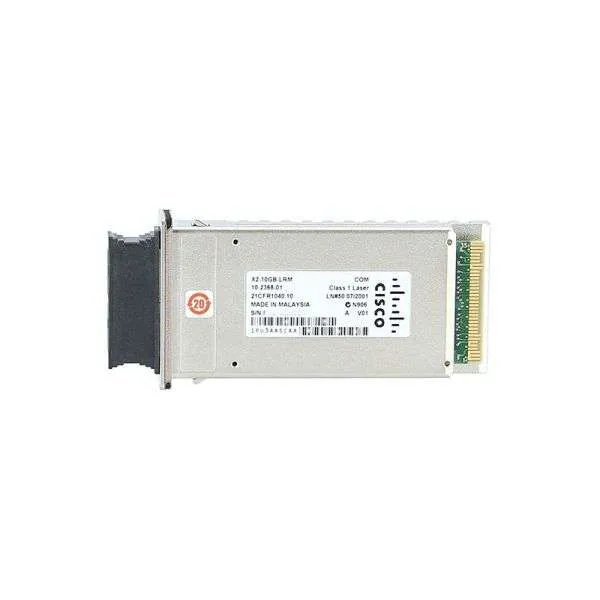

Cisco-X2-10GB-LRM
Cisco-X2-10GB-LRM
$160.00
The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3.
Quick Specs
Table 1 shows the Quick Specs.
|
Cisco X2 |
Wavelength (nm) |
Cable Type |
Core Size (Microns) |
Modal Bandwidth (MHz*km) |
Cable Distance |
|
Cisco X2-10GB-LRM |
1310 |
MMF |
62.5 50.0 50.0 |
500 400 500 |
220m 100m 220m |
|
SMF |
G.652 |
none |
300m |
Table 2Optical Transmit and Receive Specifications.
|
Product |
Type |
Transmit Power (dBm) |
Receive Power (dBm) |
Transmit and Receive Wavelength Range (nm) |
|||
|
Maximum |
Minimum |
Maximum |
Minimum |
Transmit |
Receive |
||
|
Cisco X2-10GB-LRM |
10GBASE-LRM 1310 nm MMF and SMF |
0.5 |
-6.5 |
0.5 |
-8.4 (in average) and -6.5 (in OMA) |
1260 to 1355 |
|
X2-10GB-LRM Specification |
|
| General | |
| Device Type | X2 transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LRM |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 722 ft |
| Compliant Standards | IEEE 802.3ae |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LRM – SC multi-mode x 2 |
| Compatible Slots | 1 x X2 |
| Dimensions & Weight | |
| Width | 1.4 in |
| Depth | 3.6 in |
| Height | 0.5 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Compatibility Information | |
| Designed For | Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD |
RELATED PRODUCTS
Related products
-
Transceivers
Cisco-QSFP-40G-SR4
Original price was: $250.00.$190.00Current price is: $190.00. Add to cart -
Transceivers
Cisco-SFP-10/25G-LR-S
Original price was: $750.00.$520.00Current price is: $520.00. Add to cart -
Transceivers
Cisco-SFP-10G-SR-S
Original price was: $40.00.$36.00Current price is: $36.00. Add to cart -
Transceivers

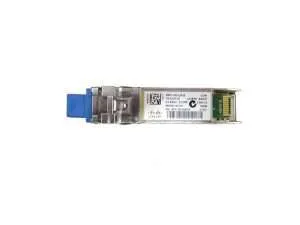

Cisco-SFP-10G-LR-S
