J9822A

Sale!

J9822A

Original price was: $6,500.00.Current price is: $3,795.00.

Aruba J9822A is a HPE 5412R zl2 Switch, including 1 HPE 5400R zl2 Management Module (J9827A) and 1 HPE 5412R zl2 Switch Fan Tray (J9832A). The HPE Aruba 5400R Switch Series is a Layer 3 modular switch series that delivers high-performance, low latency and resiliency for a better mobile-first campus experience.

J9822A

J9822A

Original price was: $6,500.00.Current price is: $3,795.00.

Product Number J9822A
Type HPE 5412R zl2 Switch
Included accessories 1 HPE 5400R zl2 Management Module (J9827A)

1 HPE 5412R zl2 Switch Fan Tray (J9832A)

I/O ports and slots 12 open module slots

Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or

96 SFP+ ports or 96 HPE Smart Rate

Multi-Gigabit or 24 40GbE ports, or a combination

Power supplies 4 power supply slots

2 minimum power supplies required (ordered separately)

Fan Tray Includes: 1 x J9832A

1 fan tray slot

Dimensions (W x D x H) 17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height)
Weight 38.1 lb (17.28 kg)

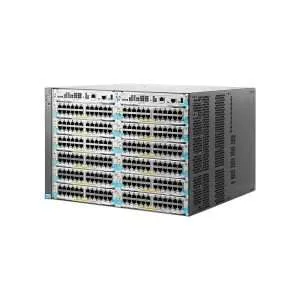

Appearance of HPE J9822A

J9822A
J9822A
Product Code J9821A J9822A
Type HPE 5406R zl2 Switch HPE 5412R zl2 Switch
Included accessories 1 HPE 5400R zl2 Management Module (J9827A)

1 HPE 5406R zl2 Switch Fan Tray (J9831A)

1 HPE 5400R zl2 Management Module (J9827A)

1 HPE 5412R zl2 Switch Fan Tray (J9832A)

I/O ports and slots 6 open module slots

Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate

Multi-Gigabit or 12 40GbE ports, or a combination

12 open module slots

Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or

96 SFP+ ports or 96 HPE Smart Rate

Multi-Gigabit or 24 40GbE ports, or a combination

Power supplies 2 power supply slots

1 minimum power supply required (ordered separately)

4 power supply slots

2 minimum power supplies required (ordered separately)

Fan Tray Includes: 1 x J9831A

1 fan tray slot

Includes: 1 x J9832A

1 fan tray slot

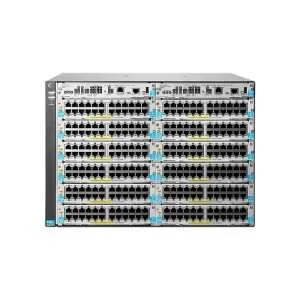

Front view of HPE J9822A

J9822A
J9822A

J9822A Specification

J9822A Specification

Type HPE 5412R zl2 Switch
Included accessories 1 HPE 5400R zl2 Management Module (J9827A)

1 HPE 5412R zl2 Switch Fan Tray (J9832A)

I/O ports and slots 12 open module slots

Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or

96 SFP+ ports or 96 HPE Smart Rate

Multi-Gigabit or 24 40GbE ports, or a combination

Power supplies 4 power supply slots

2 minimum power supplies required (ordered separately)

Fan Tray Includes: 1 x J9832A

1 fan tray slot

Dimensions (W x D x H) 17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height)
Weight 38.1 lb (17.28 kg)
Memory and processor
v3 Gigabit Module Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit Module ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal
v3 10G Module Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 10G Module ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal
v3 40G Module Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
Management Module Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal

surface mounting only

Performance (IPv6 Ready Certified)
1000 Mb Latency < 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency < 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency < 1.5 µs (FIFO 64-byte packets)
Throughput Up to 1142.8 Mpps
Routing/Switching capacity 1920 Gbps
Switch fabric speed 2030 Gbps
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 64000 entries
Environment
Operating temperature 32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS Opacity

Shield installed

Operating relative humidity 15% to 95% @ 113°F (45°C), non condensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95% @ 149°F (65°C), non condensing
Altitude Up to 10,000 ft (3 km)
Acoustic Power: 49 dB, Pressure: 35.7 dB ISO 7779,, ISO 9296
Electrical characteristics
Frequency 50/60 Hz
80plus.org Certification Gold
Description Does not come with power supply. Two power supply slots are available; three different power supplies are available.

See power supply products for additional specifications.

Maximum heat dissipation 4900 BTU/hr (5169 kJ/hr), (max. non-PoE);

7400 BTU/hr (7,807 kJ/hr), (max. using PoE)

Voltage 100–127/200–240 VAC, rated
Idle power (depending on power supply chosen)
Notes Heat dissipation does not include heat dissipated by the PoE-powered devices themselves. When more than four

power cords are installed in a 5412R zl2 switch chassis, additional installation requirements are needed.

Safety CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions FCC part 15 Class A; EN 55022/CISPR 22 Class A
Immunity

EN

ESD

Radiated

EFT/Burst

Surge

Conducted

Power frequency magnetic field

Harmonics

Flicker

EN 55024, CISPR 24

IEC 61000-4-2; 4 kV CD, 8 kV AD;

HPE ENV. 765.002

IEC 61000-4-3; 3 V/m

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC

IEC 61000-4-6; 3 Vrms

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

EN 61000-3-2, IEC 61000-3-2

EN 61000-3-3, IEC 61000-3-3

Management IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band

management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB)

AirWave Network Management

Notes Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later; For

example, J9142B, J8177C).
