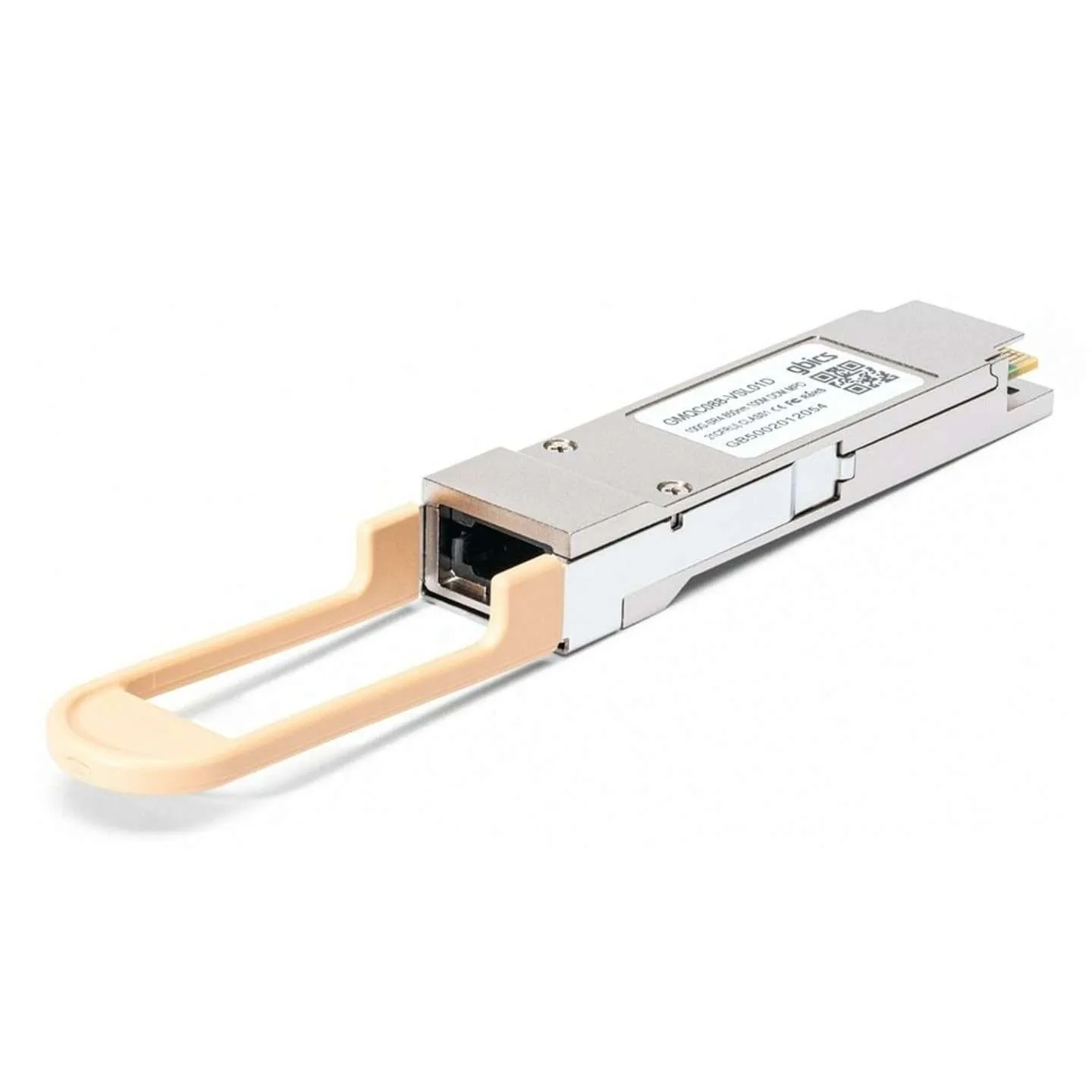

JNP-QSFP-100G-SR4
JNP-QSFP-100G-SR4
Original price was: $1,570.00.$1,060.00Current price is: $1,060.00.
Juniper QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF, 740-061405
Specifications
- Product Number: JNP-QSFP-100G-SR4
- Product Name: QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF
- Part Number: 740-061405
- Speed: 100 Gigabit Ethernet
- Transceiver Type: QSFP28
- Product Type: Optical Transceiver
- Connector: MPO-12
- Monitoring Available: Yes
- Digital Optical Monitoring: Yes
- Standard: 100GBASE-SR4
- Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE 802.3bm
- Signaling rate, each lane: 25.78125 GBd +/- 100 ppm
- Transmitter wavelengths (range): 840 nm through 860 nm
- Transmitter output power, each lane (minimum): –8.4 dBm
- Transmitter output power, each lane (maximum): 2.4 dBm
- Receiver input power, each lane (minimum): –10.3 dBm
- Receiver input power, each lane (maximum): 2.4 dBm
- Cable type: MMF
- Core size/cladding: 50/125 µm
- Distance: 70 m on OM3, 100 m on OM4
- Operating Temperature (range): 0° C to 70° C
- Storage temperature: –40° C to 85° C
