JNP-QSFP-100G-SR4

Sale!

JNP-QSFP-100G-SR4

Original price was: $1,570.00.Current price is: $1,060.00.

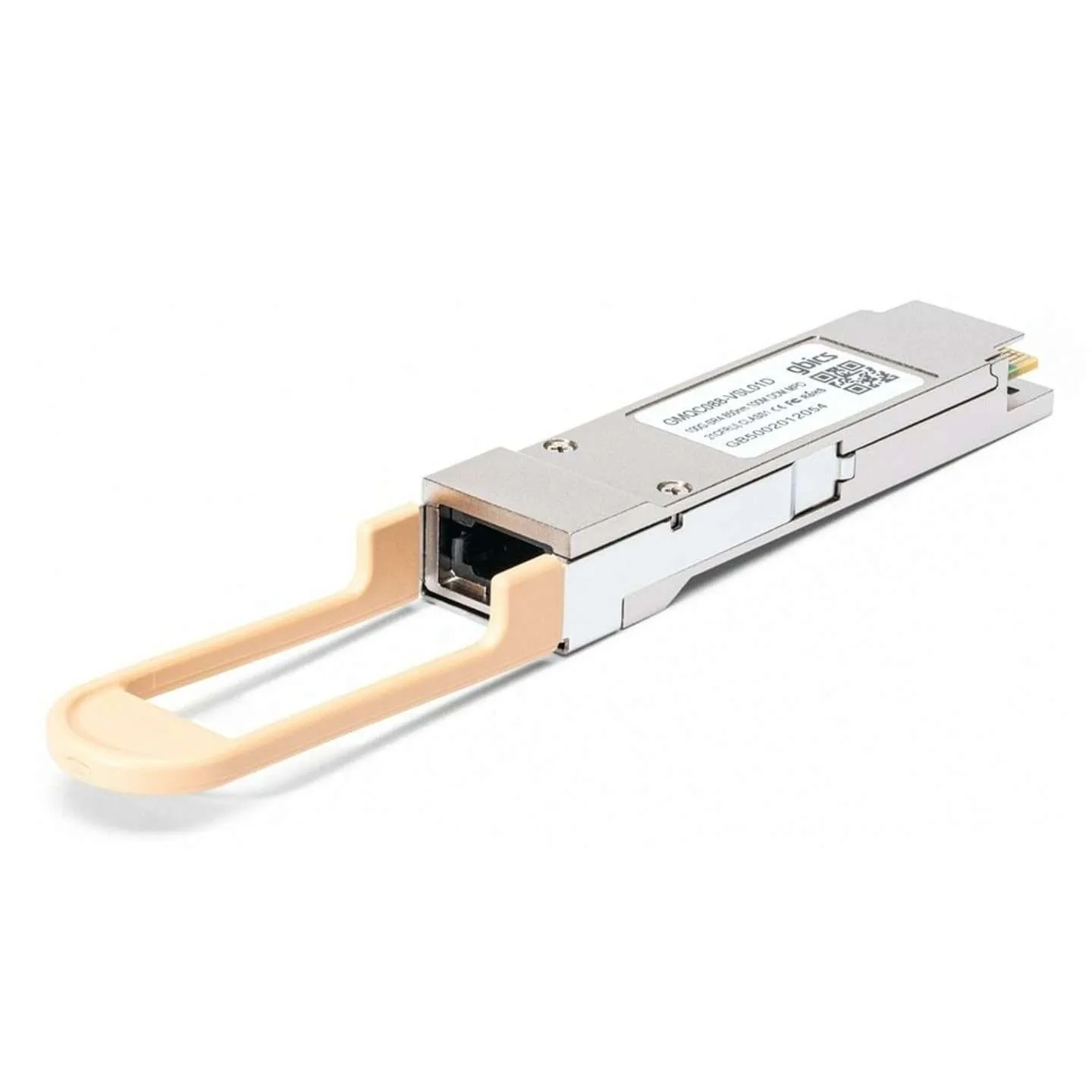

Juniper QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF, 740-061405

JNP-QSFP-100G-SR4

Original price was: $1,570.00.Current price is: $1,060.00.

Specifications
  • Product Number: JNP-QSFP-100G-SR4
  • Product Name: QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF
  • Part Number: 740-061405
  • Speed: 100 Gigabit Ethernet
  • Transceiver Type: QSFP28
  • Product Type: Optical Transceiver
  • Connector: MPO-12
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 100GBASE-SR4
  • Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE 802.3bm
  • Signaling rate, each lane: 25.78125 GBd +/- 100 ppm
  • Transmitter wavelengths (range): 840 nm through 860 nm
  • Transmitter output power, each lane (minimum): –8.4 dBm
  • Transmitter output power, each lane (maximum): 2.4 dBm
  • Receiver input power, each lane (minimum): –10.3 dBm
  • Receiver input power, each lane (maximum): 2.4 dBm
  • Cable type: MMF
  • Core size/cladding: 50/125 µm
  • Distance: 70 m on OM3, 100 m on OM4
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
