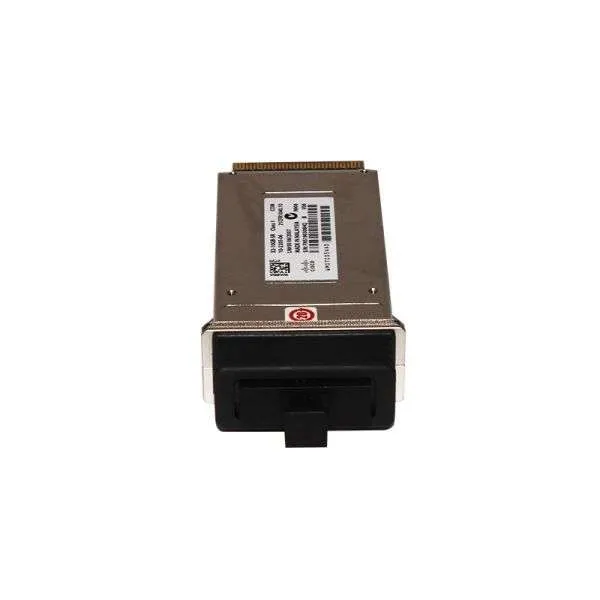

Cisco-X2-10GB-SR
Cisco-X2-10GB-SR
$60.00
The Cisco-X2-10GB-SR is a trustworthy and high-quality 10 Gigabit Ethernet transceiver. Designed for short-range connections, it operates over multi-mode fiber optic cables at the wavelength of Copied from Topparagonresource.com 850nm. The Cisco 10GBASE-SR Module supports a link length of 26m on standard FDDI grade MMF. Using 2000 MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700 MHz*km MMF (OM4), up to 400m link lengths are possible.
Quick Specs
Table 1 shows the Quick Specs.
|
Cisco X2 |
Wavelength (nm) |
Cable Type |
Core Size (Microns) |
Modal Bandwidth (MHz*km) |
Cable Distance |
|
Cisco X2-10GB-SR |
850 |
MMF |
62.5 62.5 50.0 50.0 50.0 50.0 |
160 (FDDI-grade) 200 (OM1) 400 500 (OM2) 2000 (OM3) 4700 (OM4) |
26m 33m 66m 82m 300m 400m |
Table 2 shows the Optical Transmit and Receive Specifications.
|
Product |
Type |
Transmit Power (dBm) |
Receive Power (dBm) |
Transmit and Receive Wavelength Range (nm) |
|||
|
Maximum |
Minimum |
Maximum |
Minimum |
Transmit |
Receive |
||
|
Cisco X2-10GB-SR |
10GBASE-SR 850 nm MMF |
-1 |
-7.3 |
-1.0 |
-9.9 |
840 to 860 |
|
Cisco-X2-10GB-SR
| General | |
| Device Type | X2 transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Compliant Standards | IEEE 802.3ae |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR – SC multi-mode x 2 |
| Compatible Slots | 1 x X2 |
| Dimensions & Weight | |
| Width | 1.4 in |
| Depth | 3.6 in |
| Height | 0.5 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
X2-10GB-SR Specification
X2-10GB-SR Specifications |
|
|
Wavelength (nm) |
850 |
|
Fiber Type |
MMF |
|
Core Size (μm) |
62.5
62.5 50.0 50.0 50.0 50.0 |
|
Modal Bandwidth (MHz* Km) |
160 (FDDI-grade)
200 (OM1) 400 500 (OM2) 2000 (OM3) 4700 (OM4) |
|
Operating Distance |
26m
33m 66m 82m 300m 400m |
| Type | 10GBASE-SR 850 nm MMF |
|
Transmit Power(dBm) |
Maximum: -1 |
|
Receive Power(dBm) |
Maximum: -1.0 Minimum: -9.9 |
| Transmit and Receive Wavelength Range (nm) | 840 to 860 |
|
Dimensions (H x W x D) |
91mm x 36mm x 13.46mm |
|
Operating temperature range |
0 and 70°C (32 to 158°F) |
|
Storage temperature range |
-40 to 85°C (-40 to 185°F) |
| Power Consumption (W) | 4 |
