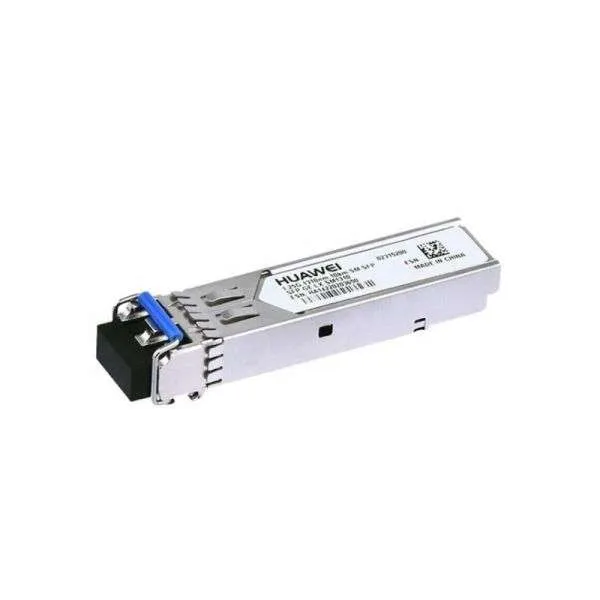

Huawei-SFP-GE-SX-C

Huawei-SFP-GE-SX-C

$22.00

Huawei eSFP-GE-SX-MM850 is Optical Transceiver. It’s a Multi-mode Module.

Huawei-SFP-GE-SX-C

Product Code eSFP-GE-SX-MM850
Transceiver form factor eSFP
Transmission speed GE
Center wavelength (nm) 850
Standard compliance 1000base-SX
Connector type LC
Applicable cable and maximum

transmission distance

· Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
· Multimode fiber (OM1): 0.275 km
· Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
· Multimode fiber (OM2): 0.55 km
· Multimode fiber (OM3): 1 km
Transmit power (dBm) -9.5 to -2.5
Maximum receiver sensitivity (dBm) -17.0
Overload power (dBm) 0
Extinction ratio (dB) 9
Operating temperature 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 110 x 70 x 37
